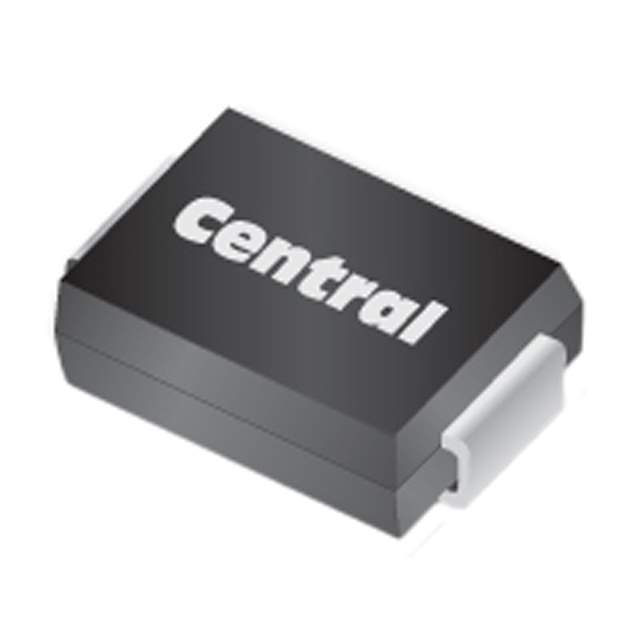

The 1SMC5.0CA TR13 is a Transient Voltage Suppressor (TVS) diode manufactured by Central Semiconductor Corp, designed to protect sensitive electronic circuits from voltage transients induced by sources like lightning, inductive switching, and electrostatic discharge (ESD). This bidirectional TVS diode offers protection irrespective of the transient voltage's polarity, clamping overvoltage events to a safe level and preventing damage to connected components. The TR13 indicates a specific tape and reel packaging for automated assembly processes.

Applications

• I/O port protection
• Power supply protection
• Data line protection
• Microcontroller protection
• Automotive electronics
• Industrial control systems

Features

• High Surge Capability: Peak pulse power dissipation of 1500W @ 10/1000μs waveform
• Bidirectional Configuration
• Low Clamping Voltage
• Fast Response Time: Typically less than 1.0 ps from 0 Volts to BV min
• Excellent Clamping Capability
• Glass Passivated Junction
• RoHS Compliant

Benefits

• Protects susceptible electronics from damaging voltage transients.
• Improves system robustness and minimizes downtime stemming from component failure.
• Reduces repair costs and the need for component replacement due to voltage surges.
• Provides an efficient and compact solution for transient voltage suppression.
• Complies with industry standards for surge protection.

Additional Details

The 1SMC5.0CA TR13 features a standoff voltage of 5.0V with a breakdown voltage of approximately 6.4V. Its clamping voltage at peak pulse current is around 9.2V. The operating temperature range is typically -55°C to +150°C. This TVS diode comes in a surface-mountable SMC (DO-214AB) package. The TR13 designation means it is provided on tape and reel, ideal for automated pick-and-place manufacturing. Proper handling and soldering techniques, as specified by Central Semiconductor Corp, are important for reliable operation and long-term performance.
