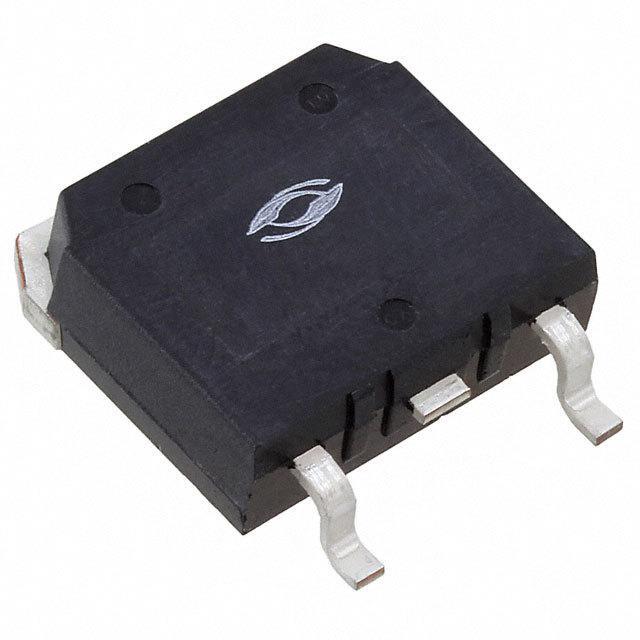

APT60D120SG Microsemi Corporation
Same model may have multiple batches, images only for reference.

APT60D120SG

Part No APT60D120SG
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 60A D3 / Diode Switching 1.2KV 60A 3-Pin(2+Tab) D3PAK Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 60A
Voltage - Forward (Vf) (Maximum) @ If 2.5V @ 60A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 400ns
Current - Reverse Leakage @ Vr 250μA @ 1200V
Mounting SMD
Package TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
Manufacturer Package D3 [S]
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 768707-APT60D120SG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APT60D120S
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian APT60D120SG CAD Model

Description

The APT60D120SG is a standard diode from Microsemi Corporation.

  • Type: Fast-recovery
  • Peak Current: 60A
  • Reverse Recovery Time: 400ns
  • Current Rating: 60A
  • Voltage Rating: 1200V
  • Package: TO-268-3, D3Pak (2 Leads + Tab), TO-268AA
  • Mounting: Surface Mountable
  • Family: APT60D120S
  • Operating Temperature Range: -55°C to 175°C
  • ECCN Code: EAR99
  • Status: Obsolete
  • Package Type: Tube
  • Quantity per Package: 1
