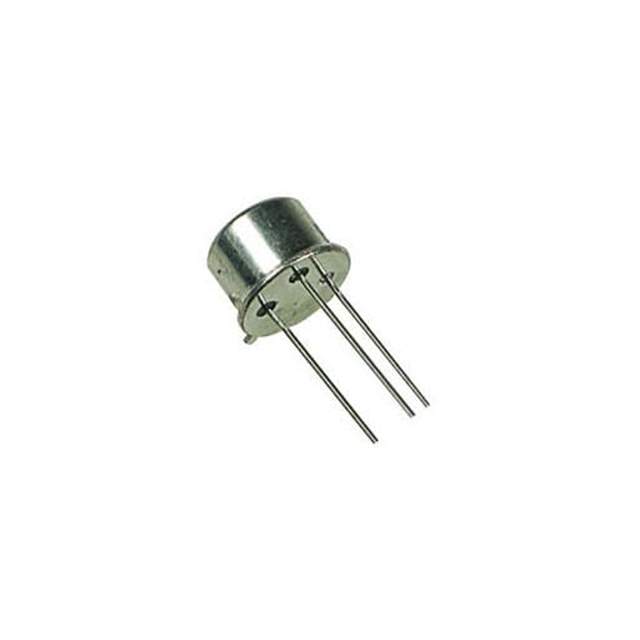

2N3866 Real Image
Same model may have multiple batches, images only for reference.

2N3866

Part No 2N3866
Manufacturer Central Semiconductor Corp
Catalog RF Transistors (BJT)
Description TRANS RF NPN 30V 400MA TO-39
Datasheet
2N3866 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Bulk
Status Active
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Frequency - Transition 500MHz
Maximum Power Dissipation 5W
Typical Gain (hFE) (Min) 10 @ 50mA, 5V
Maximum Current Collector 400mA
Temperature Range - Operating -65°C to 200°C (TJ)
Mounting Through Hole
Case / Package TO-39
Win Source Part Number 1003869-2N3866
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2N3866 CAD Model

Description

The Central Semiconductor Corp 2N3866 is a high-frequency NPN transistor that operates at a transition frequency of 500MHz.

  • Type: NPN Transistor
  • Transition Frequency: 500MHz
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Collector Current: 400mA
  • Package: TO-39
  • Power Dissipation: 5W
  • Minimum Gain (hFE): 10 @ 50mA and 5V
  • Temperature Range: -65°C to 200°C (TJ)
  • Packaging: Bulk
  • Mounting: Through-Hole
  • Supply and Demand Status: Balanced
