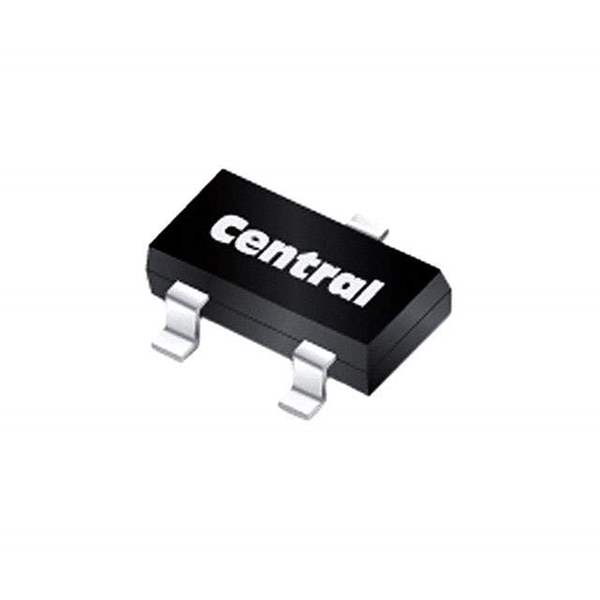

CMPSH-3A TR Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CMPSH-3A TR

Part No CMPSH-3A TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT23
Datasheet
CMPSH-3A TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Current - Reverse Leakage @ Vr 500nA @ 25V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 013214-CMPSH-3A TR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian CMPSH-3A TR CAD Model

Description

Overview

The CMPSH-3A TR diode is tailored for applications needing rapid switching and low power loss. With a design focused on optimizing operational efficiency, it serves diverse electronic needs.

Applications

  • Charger Circuits
  • Voltage Clamping
  • Reverse Voltage Protection

Features and Benefits

  • High-Speed Performance: Ideal for time-sensitive applications.
  • Energy Efficiency: Conserves power with minimal energy loss.
  • Durable Construction: Ensures long-term reliability in demanding environments.

The CMPSH-3A TR is a versatile and efficient choice for your circuit protection and power management needs.
