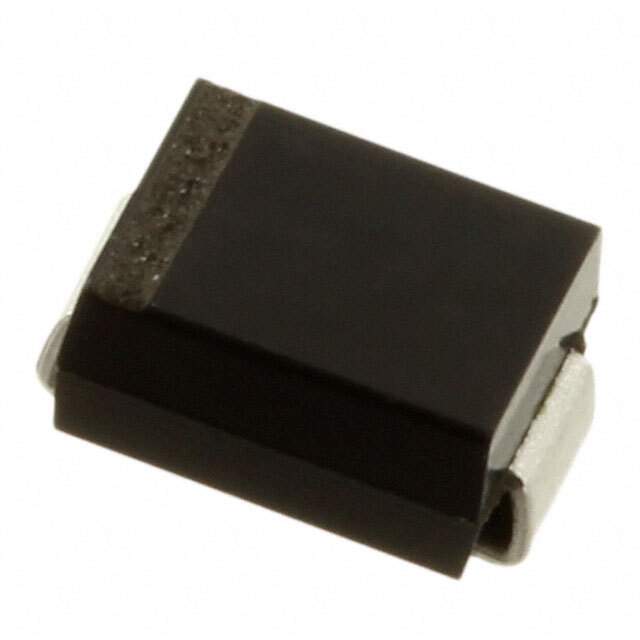

The CMR2U-02 TR13 is a surface mount Schottky Barrier Rectifier manufactured by Central Semiconductor Corp. This rectifier is designed for applications requiring fast switching speeds and low forward voltage drop.

Applications

• High-frequency rectification
• DC-DC converters
• Switching mode power supplies (SMPS)
• Reverse polarity protection
• Freewheeling diode applications

Features

• Low forward voltage drop
• Fast switching speed
• Surface mount package
• High surge current capability
• RoHS compliant

Benefits

• Increased efficiency in power conversion circuits due to the low forward voltage drop.
• Reduced switching losses in high-frequency applications thanks to the fast switching speed.
• Simplified assembly with the surface mount package.
• Improved reliability under surge conditions due to the high surge current capability.
• Environmentally friendly due to RoHS compliance.

Additional Details

The CMR2U-02 TR13 is housed in a SOD-123 package. Its key specifications include a reverse voltage (VRRM) of 20V, a forward current (IF) of 2A, and a forward voltage (VF) of approximately 0.45V at 2A. The operating temperature range is typically from -65°C to +125°C. This Schottky rectifier is designed to minimize power loss and improve efficiency in a variety of power supply and rectification applications. Engineers should consult the datasheet for detailed specifications and application notes prior to incorporating this component into their designs. The TR13 suffix indicates tape and reel packaging for automated assembly processes.
