The CSHD3-40 TR13 PBFREE is a Schottky Barrier Rectifier manufactured by Central Semiconductor Corp. Schottky diodes are known for their fast switching speeds and low forward voltage drop compared to standard silicon diodes, making them ideal for applications requiring high efficiency and rapid response times. The 'PBFREE' designation indicates that this component is lead-free, complying with RoHS environmental standards.

Applications:

• High-Frequency Rectification
• Switching Power Supplies
• Freewheeling Diode in Inductive Circuits
• Reverse Polarity Protection
• DC-DC Converters

Features:

• Schottky Barrier Diode
• Low Forward Voltage Drop (VF)
• Fast Switching Speed
• High Surge Current Capability
• Pb-Free (RoHS Compliant)

Benefits:

• Improved Efficiency: The low forward voltage drop minimizes power loss, leading to higher efficiency in power conversion circuits.
• Fast Switching: Enables faster switching speeds, crucial for high-frequency applications.
• Protection Against Voltage Spikes: High surge current capability provides robustness against transient voltage spikes.
• Environmentally Friendly: Pb-Free construction complies with RoHS standards, reducing environmental impact.
• Reduced Heat Dissipation: The reduced forward voltage drop results in lower heat dissipation, improving reliability and reducing the need for heat sinking.

Additional Details:

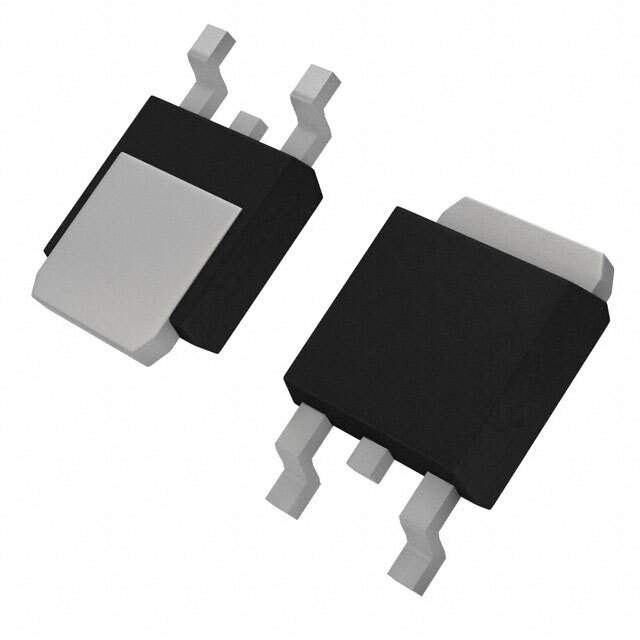

The CSHD3-40 has a maximum repetitive peak reverse voltage (VRRM) of 40V and a forward current (IF) of 3A. The forward voltage drop (VF) is typically around 0.5V at the rated current. The operating temperature range is typically -65°C to +125°C. The TR13 indicates the tape and reel packaging for automated assembly. The package is typically a surface mount SMA or similar package.

When using the CSHD3-40, it is important to consider the thermal management of the diode, especially at high currents. Proper heatsinking or airflow may be necessary to prevent overheating. Ensure that the reverse voltage and forward current do not exceed the specified limits to prevent damage to the diode. Refer to the datasheet for detailed specifications and application recommendations.
