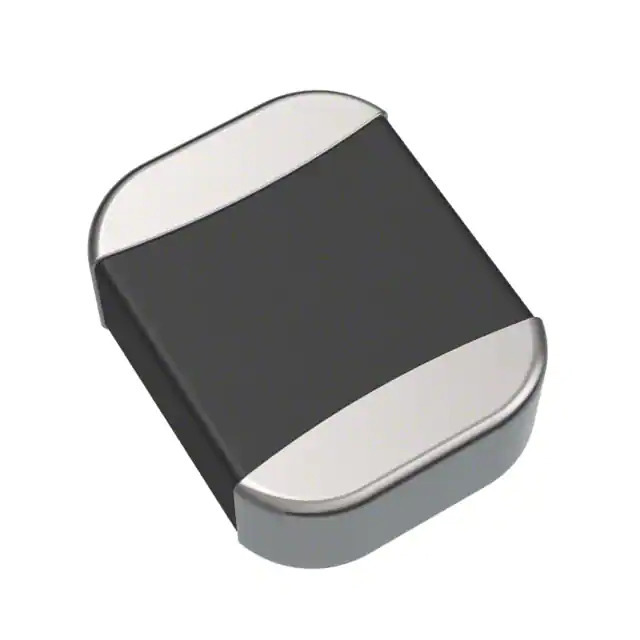

BDCD002520101R0MS1 Chilisin
Same model may have multiple batches, images only for reference.

BDCD002520101R0MS1

Part No BDCD002520101R0MS1
Manufacturer Chilisin
Catalog Fixed Inductors
Description FIXED IND 1UH 3A 78 MOHM SMD
Datasheet
BDCD002520101R0MS1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Chilisin Electronics
Series BDCD
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 4.3A
Shielding Shielded
DC Resistance (DCR) 78mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370395-BDCD002520101R0MS1
Ultra Librarian 3D Model Ultra Librarian BDCD002520101R0MS1 CAD Model

Description

The Chilisin Electronics BDCD002520101R0MS1 is a molded fixed inductor that operates in a temperature range of -40°C to 125°C.

  • Manufacturer: Chilisin Electronics
  • Series: BDCD
  • Temperature Range: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package Type: Tape & Reel
  • Size: 1008 (2520 Metric)
  • Height: 0.039" (1.00mm)
  • Shielded: Yes
  • Inductance: 1 µH
  • Current Rating: 3 A
  • DC Resistance: 78mOhm
  • Product Status: Active
  • REACH Status: Unaffected
  • ECCN: EAR99
