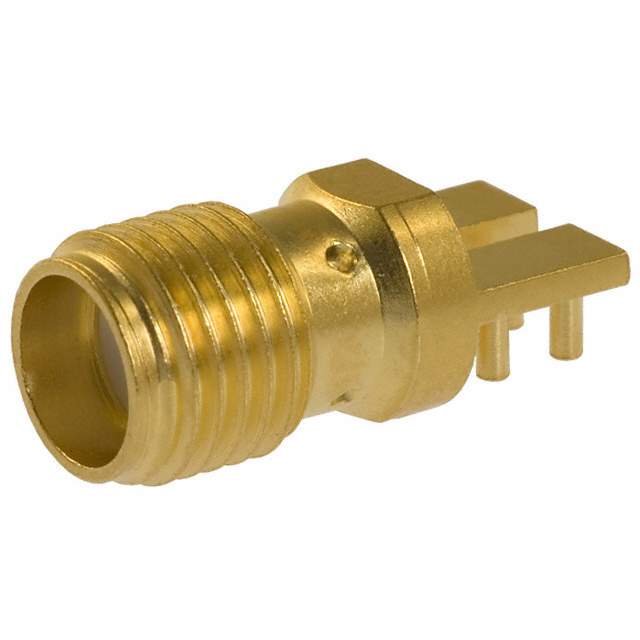

Product 142-0761-821 from Cinch Connectivity Solutions is a SMA High-Frequency End-Launch Connector. It is a 50Ω connector that can be used on high-frequency PC board substrate layers as thin as 8mm and operate at frequencies up to 26.5GHz. These connectors provide a solution for microwave engineers who fabricate circuit designs on very thin high-frequency board substrates. The in-line connector design has fewer reflections when compared to a right-angle (perpendicular) PC-mount transition.

SMA connectors are widely used in microwave and radio frequency applications, such as radar, satellite communication, and test and measurement equipment. They are known for their high performance, reliability, and durability.

Here are some of the key features of the Product 142-0761-821 SMA High-Frequency End-Launch Connector:

• 50Ω impedance
• 1000MΩ minimum insulation resistance
• Temperature range of -65°C to +165°C
• In-line connector design for fewer reflections
• Compatible with thin high-frequency board substrates as thin as 8mm
• Frequency range of up to 26.5GHz

This connector is ideal for a variety of high-frequency applications, including:

• Microwave and RF circuit boards
• Radar systems
• Satellite communication systems
• Test and measurement equipment
• Medical devices
• Aerospace and defense systems

Here are some examples of how the Product 142-0761-821 SMA High-Frequency End-Launch Connector can be used:

• In a microwave circuit board for a radar system, the connector would be used to connect the microwave antenna to the receiver.
• In a satellite communication system, the connector would be used to connect the satellite transceiver to the antenna.
• In a test and measurement instrument, the connector would be used to connect the instrument to the test device.
• In a medical device, the connector would be used to connect the device's RF antenna to the internal circuitry.
• In an aerospace and defense system, the connector would be used to connect the system's RF components, such as radar, communication, and navigation systems.

The Product 142-0761-821 SMA High-Frequency End-Launch Connector is a high-quality, reliable connector that is ideal for a variety of high-frequency applications. It is made with durable materials and features a secure connection that will not come loose. This connector is also easy to install and use, making it a great choice for both beginners and experienced users.
