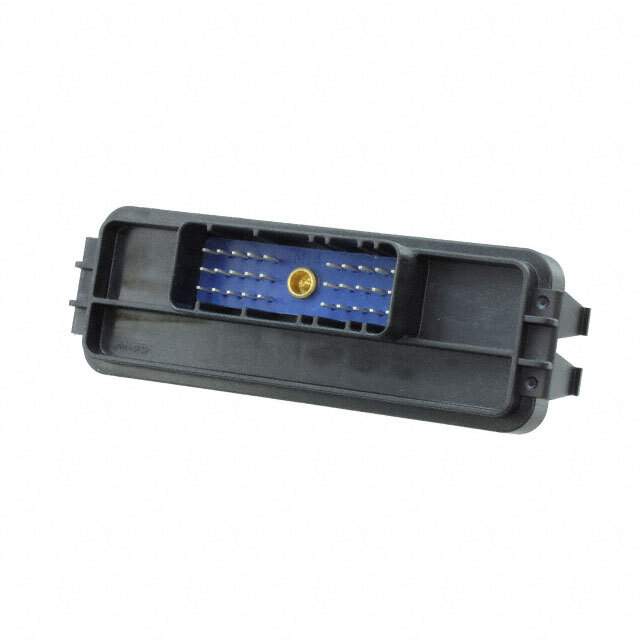

5810130072 Real Image
Same model may have multiple batches, images only for reference.

5810130072

Part No 5810130072
Manufacturer Cinch Connectivity Solutions
Catalog Rectangular Connectors
Description CONN HEADER R/A 30POS / Connector Header Through Hole, Right Angle 30 position
Datasheet
5810130072 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Cinch Connectivity Solutions
Series ModICE® ME
Package Bulk
Connector Type Header
Contact Type Male Pin
Number of Positions 30
Number of Rows 3
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Threaded
Contact Length - Post 0.126" (3.20mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polymer, Glass Filled
Features Ferrite Filter
Temperature Range - Operating -40°C ~ 85°C
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Color Black
Current Rating (Amps) 10A
Applications Automotive
Standard Package 72
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341499-5810130072
Ultra Librarian 3D Model Ultra Librarian 5810130072 CAD Model

Description

The 5810130072 is a male pin header connector from Cinch Connectivity Solutions.

  • Positions: 30
  • Series: ModICE ME
  • Current Rating: 10A
  • Voltage Rating: 24V
  • Actuator Type: Flatted (4.2mm Dia), slotted
  • Actuator Length: 7.70mm
  • Index Stop: Fixed
  • Style: Board to cable/wire
  • Package Type: Bulk
  • Mounting: Surface
  • Ingress Protection: IP67/IP69K - Dust Tight, Water Resistant, Waterproof
  • Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
