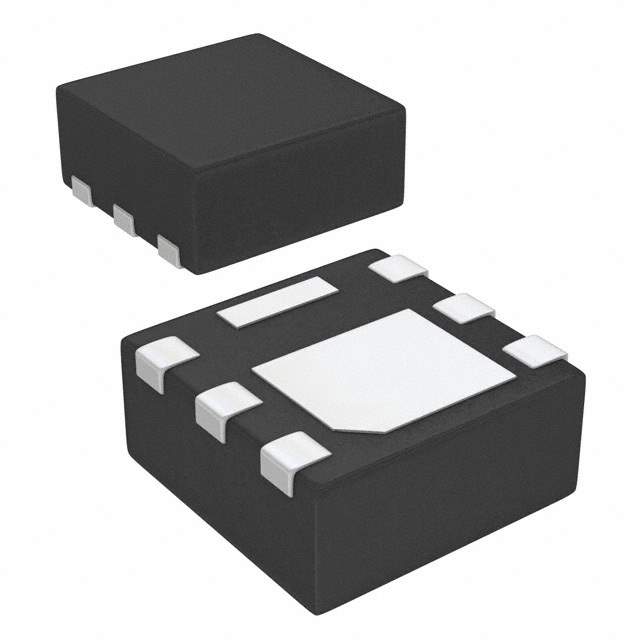

IRLHS6242TR2PBF Real Image
Same model may have multiple batches, images only for reference.

IRLHS6242TR2PBF

Part No IRLHS6242TR2PBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 10A PQFN
Datasheet
IRLHS6242TR2PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Cut Reel
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 10A (Ta), 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Gate-Source Threshold Voltage 1.1V @ 10μA
Max Gate Charge 14nC @ 4.5V
Max Input Capacitance 1110pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 1.98W (Ta), 9.6W (Tc)
Maximum Rds On at Id,Vgs 11.7 mOhm @ 8.5A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-PQFN (2x2)
Dimension 6-PowerVDFN
Win Source Part Number 1047544-IRLHS6242TR2PBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRLHS6242TR2PBF CAD Model

Description

The Infineon Technologies IRLHS6242TR2PBF MOSFET is a N-Channel power transistor that is suitable for use in a wide range of applications.

  • Maximum Power Dissipation: 1.98W (Ta)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 10A (Ta), 12A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 1.1V @ 10μA
  • Maximum Gate Charge: 14nC @ 4.5V
  • Maximum Rds On @ Id,Vgs: 11.7 mOhm @ 8.5A, 4.5V
  • Mounting: SMD (SMT)
  • Package: 6-PQFN (2x2)
  • Temperature Range: -55°C to 150°C (TJ)
  • Category: Discrete Semiconductor Products
