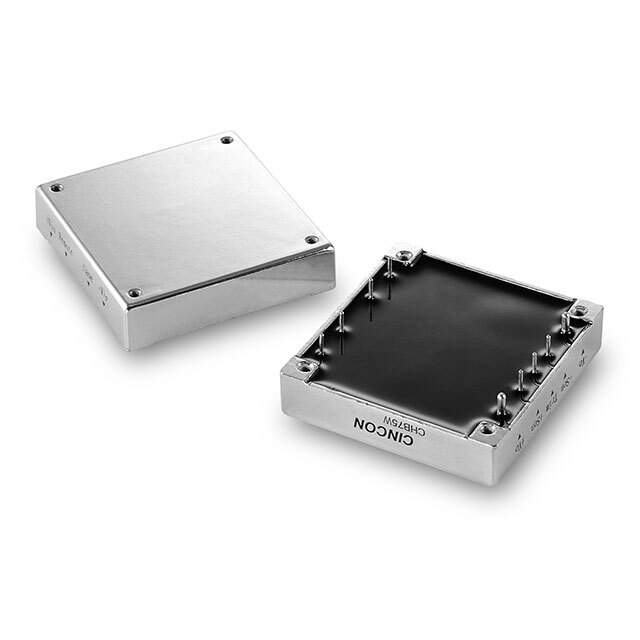

Same model may have multiple batches, images only for reference.

CHB75W-24S12

Name: CHB75W-24S12
Brand: Cincon Electronics Co. LTD
SKU: 1335120
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CHB75W-24S12
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 75W / Isolated Module DC DC Converter 1 Output 12V 6.25A 9V - 36V Input
Datasheet	CHB75W-24S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Cincon Electronics Co. LTD
Packaging	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	6.25A
Power (Watts)	75 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	83%
Mounting	Through Hole
Case / Package	Half Brick
Size / Dimension	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package	Half Brick
Control Features	Enable, Active High
Approval Agency	CE, cURus
Standard Number	60950-1
Base Product Number	CHB75
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	2034-2946
Standard Package	12
Win Source Part Number	1335120-CHB75W-24S12
Ultra Librarian 3D Model	Ultra Librarian CHB75W-24S12 CAD Model

Alternative Products

Description

The Cincon Electronics Co. LTD CHB75W-24S12 is a DC DC converter power supply module designed for ITE (Commercial) applications.

Applications: ITE (Commercial)
Module Type: Isolated module
Features: Remote On/Off, over current protection, over temperature protection, over voltage protection, short circuit protection, and under voltage lockout
Power Rating: 75W
Voltage Isolation: 1.5 kV
Size: 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Package: 12
Control Features: Enable and active high
Voltage Input Range: 9V to 36V
Voltage Output: 12V
Efficiency: 83%
RoHS3 Compliant: Yes
