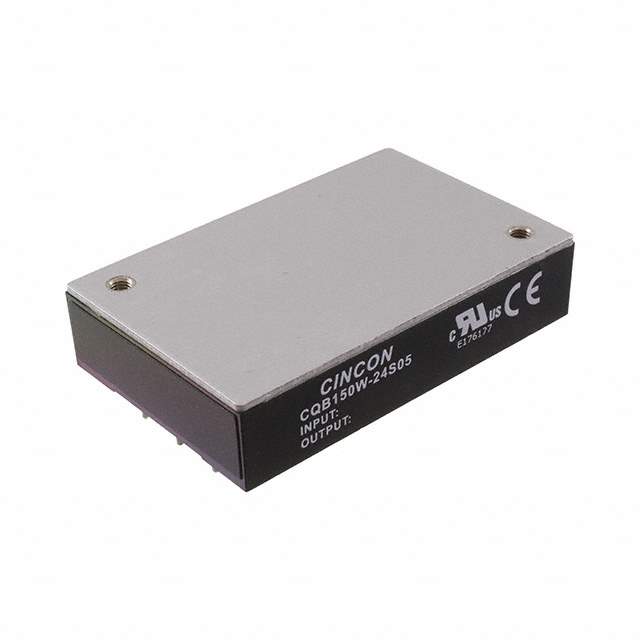

Same model may have multiple batches, images only for reference.

CQB150W-24S05

Name: CQB150W-24S05
Brand: Cincon Electronics Co. LTD
SKU: 1340287
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CQB150W-24S05
Manufacturer	Cincon Electronics Co. LTD
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 150W / Isolated Module DC DC Converter 1 Output 5V 30A 9V - 36V Input
Datasheet	CQB150W-24S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cincon Electronics Co. LTD
Series	CQB150W (150W)
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	30A
Power (Watts)	150 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial) , Railway
Features	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 105°C (With Derating)
Efficiency	92%
Mounting Type	Through Hole
Package / Case	Module
Size / Dimension	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Supplier Device Package	Module
Control Features	Enable, Active High
Approval Agency	CB, CE, cURus
Standard Number	50155; 60950-1
Base Product Number	CQB150
Standard Package	15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340287-CQB150W-24S05
Ultra Librarian 3D Model	Ultra Librarian CQB150W-24S05 CAD Model

Alternative Products

Description

This isolated module is a CQB150W (150W) type with a size/dimension of 2.28 inches L x 1.45 inches W x 0.50 inches H (57.9mm x 36.8mm x 12.7mm).

Voltage Isolation: 2.25 kV
Current Output: 30A
Number of Outputs: 1
Voltage Input (Min): 9V
Voltage Input (Max): 36V
Voltage Output: 5V
Efficiency: 92 percent
ECCN: EAR99
REACH Status: Unaffected
MSL Level: 1 (Unlimited)
HTSUS: 8504.40.9580
Manufacturer: Cincon Electronics Co. LTD.
