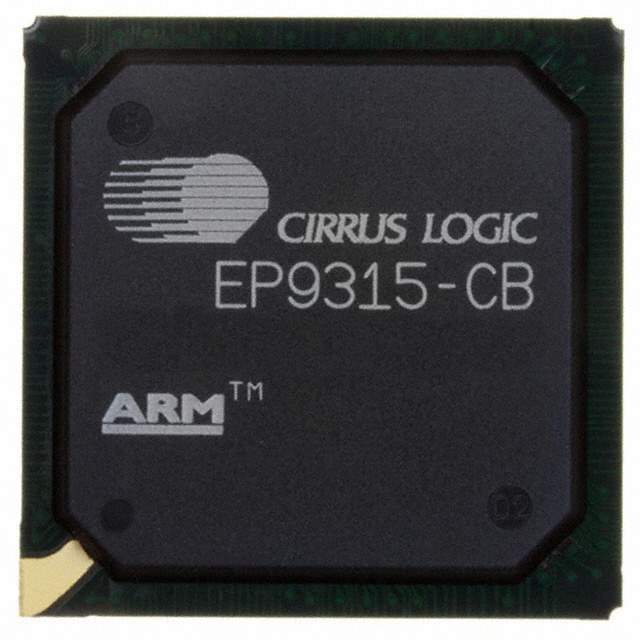

EP9315-CBZ Real Image
Same model may have multiple batches, images only for reference.

EP9315-CBZ

Part No EP9315-CBZ
Manufacturer Cirrus Logic Inc.
Catalog Embedded - Microprocessors
Description Enhanced Universal Platform System-on-Chip Processor
Datasheet
EP9315-CBZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cirrus Logic Inc.
Series EP9
Packaging Tray
Core Processor ARM920T
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 200MHz
Co-Processors/DSP Math Engine; MaverickCrunch
RAM Controllers SDRAM
Graphics Acceleration Yes
Display & Interface Controllers Keypad, LCD, Touchscreen
Ethernet 1/10/100 Mbps (1)
USB USB 2.0 (3)
Voltage - I/O 1.8V, 3.3V
Operating Temperature Range 0°C ~ 70°C (TA)
Security Features Hardware ID
Package 352-BBGA
Manufacturer Package 352-PBGA (27x27)
Additional Interfaces AC'97, I2S, IDE, IrDA, SPI, UART
Win Source Part Number 1172212-EP9315-CBZ
Manufacturer Homepage www.cirrus.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EP9315-CBZ CAD Model

Description

The EP9315-CBZ from Cirrus Logic Inc. is a part of the EP9 series and is an integrated circuit that has a core processor of ARM920T.

  • Core Processor: ARM920T
  • Number of Cores: one
  • Bus Width: 32-bit
  • Speed: 200MHz
  • Math Engine: MaverickCrunch co-processors/DSP
  • RAM Controllers: SDRAM
  • Graphics Acceleration: yes
  • Display & Interface Controllers: Keypad, LCD, and Touchscreen
  • Ethernet: 1/10/100 Mbps (1)
  • USB: 2.0 (3)
  • Voltage: 1.8V and 3.3V
  • Security Features: hardware ID
  • Package: 352-BBGA
  • Additional Interfaces: AC'97, I2S, IDE, IrDA, SPI, and UART
  • Supply and Demand Status: balance
