Same model may have multiple batches, images only for reference.

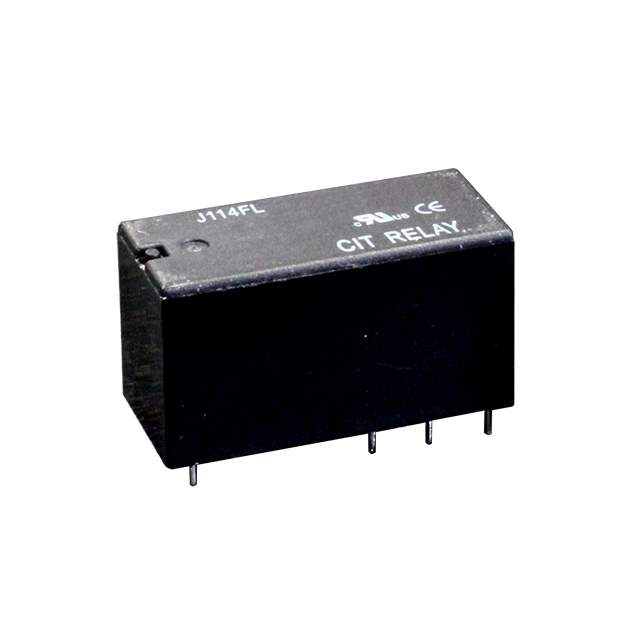

J114FL2AS824VDC.41 Real Image
Same model may have multiple batches, images only for reference.

J114FL2AS824VDC.41

Part No J114FL2AS824VDC.41
Manufacturer CIT Relay & Switch
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V / General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Datasheet
J114FL2AS824VDC.41 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr CIT Relay and Switch
Series J114FL
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8 A
Switching Voltage 380VAC, 110VDC - Max
Coil Current 16.7 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -55°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 1.44 kOhms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2449-J114FL2AS824VDC.41
Standard Package 25
Win Source Part Number 1175814-J114FL2AS824VDC.41
Ultra Librarian 3D Model Ultra Librarian J114FL2AS824VDC.41 CAD Model

Description

The J114FL2AS824VDC.41 is a DPST-NO (2 Form A) power relay from CIT Relay and Switch. J114FL2AS824VDC.41 from CIT Relay and Switch.

  • Relay Type: Power Relay
  • Contact Form: DPST-NO (2 Form A)
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.44 kOhms
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Contact Rating: 8A
  • Switching Voltage (Max): 380VAC, 110VDC
  • Operating Temperature: -55°C to 105°C
  • Seal Type: Sealed Fully
  • Coil Type: Non-Latching
  • Release Time: 5ms
  • Operate Time: 10ms
  • Package: Tube
  • Standard Package: 25
