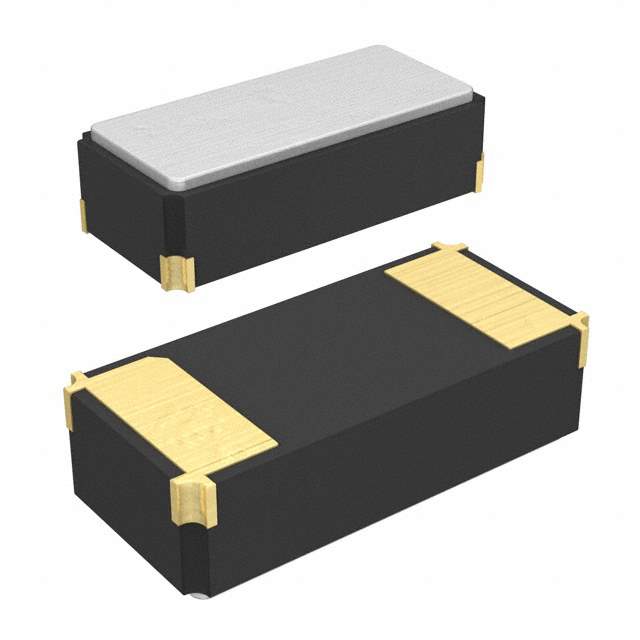

CM315D32768DZBT Real Image
Same model may have multiple batches, images only for reference.

CM315D32768DZBT

Part No CM315D32768DZBT
Manufacturer Citizen Finedevice Co Ltd
Catalog Oscillators
Datasheet
CM315D32768DZBT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Citizen Finedevice Co Ltd
Series CM315D
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Other Names 300-8861-6,300-8861-1,300-8861-2
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1285001-CM315D32768DZBT
Ultra Librarian 3D Model Ultra Librarian CM315D32768DZBT CAD Model

Description

The CM315D32768DZBT is a kHz Crystal (Tuning Fork) from Citizen Finedevice Co Ltd.

  • Package: 2-SMD, No Lead
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 70 kOhms
  • Operating Mode: Fundamental
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 6pF
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.126" L x 0.059" W (3.20mm x 1.50mm)
