Same model may have multiple batches, images only for reference.

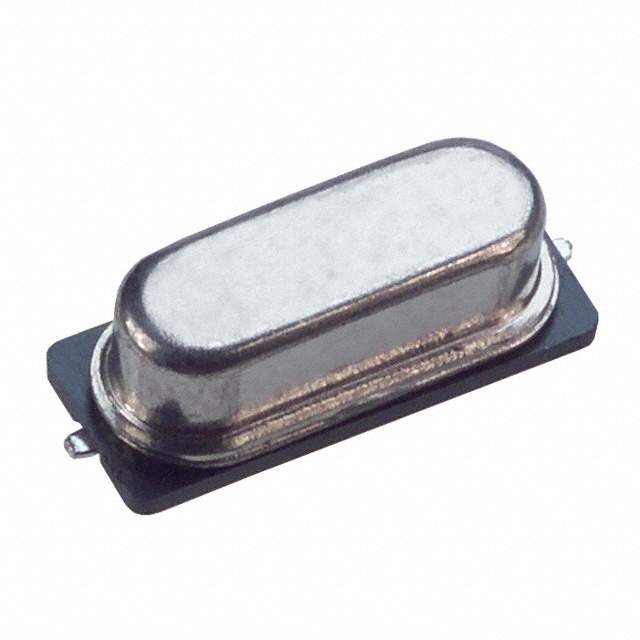

HCM497680000ABJT Real Image
Same model may have multiple batches, images only for reference.

HCM497680000ABJT

Part No HCM497680000ABJT
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 7.6800MHZ 18PF SMD
Datasheet
HCM497680000ABJT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Citizen Finedevice Co Ltd
Series HCM49
Packaging Reel package
Type MHz Crystal
Frequency 7.68MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.190" W (11.40mm x 4.83mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Win Source Part Number 775647-HCM497680000ABJT
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 01, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HCM497680000ABJT CAD Model

Description

The Citizen Finedevice Co Ltd HCM497680000ABJT is a MHz crystal from Citizen Finedevice Co Ltd.

  • Package: HC49/US
  • Temperature Range: -10°C to 60°C
  • Frequency: 7.68MHz
  • ESR (Equivalent Series Resistance): 100 Ohm
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Dimension: 0.449" L x 0.190" W (11.40mm x 4.83mm)
  • Height Seated (maximum): 0.169" (4.30mm)
  • Category: Crystals, Oscillators, Resonators
  • Popularity: Medium
  • EOL Date: 2027
  • Halogen Free: Yes
