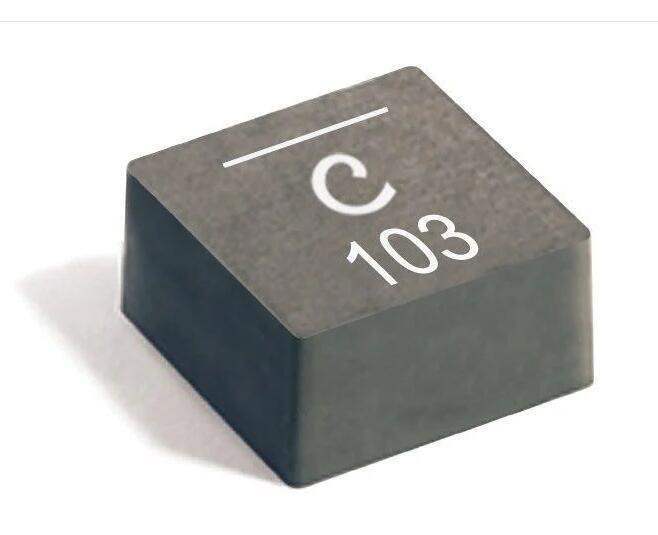

Same model may have multiple batches, images only for reference.

XAL1510-333MEB

Name: XAL1510-333MEB
Brand: Coilcraft
SKU: WS1603456
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XAL1510-333MEB
Manufacturer	Coilcraft
Catalog	Fixed Inductors
Description	Power Inductors - SMD 33uH Shld 20% 12A 20mOhms AECQ2
Datasheet	XAL1510-333MEB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Coilcraft
Category	Fixed Inductors
Package / Case	16.2 mm x 15.2 mm x 11 mm
Shielding	Shielded
Inductance	33 uH
Tolerance	20 %
Maximum DC Current	12 A
Maximum DC Resistance	20 mOhms
Saturation Current	16.7 A
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Self Resonant Frequency	5.8 MHz
Termination	Standard
Length	16.2 mm
Width	15.2 mm
Core Material	Composite
Ultra Librarian 3D Model	Ultra Librarian XAL1510-333MEB CAD Model

Alternative Products

Description

Power Inductors - SMD 33uH Shld 20% 12A 20mOhms AECQ2
