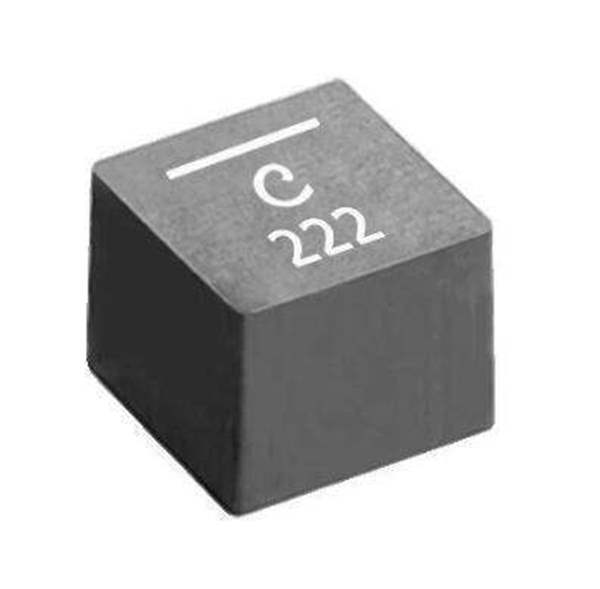

XAL5050-562MEB

Part No XAL5050-562MEB
Manufacturer Coilcraft
Catalog Fixed Inductors
Description Power Inductors - SMD 5.6uH Shld 20% 7.2A 25.8mOhms AECQ2
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Coilcraft
Category Fixed Inductors
Type Power Choke
Package / Case 5.28 mm x 5.1 mm x 5.48 mm
Shielding Shielded
Inductance 5.6 uH
Tolerance 20 %
Maximum DC Current 7.2 A
Maximum DC Resistance 25.8 mOhms
Saturation Current 6.3 A
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Self Resonant Frequency 25 MHz
Ultra Librarian 3D Model Ultra Librarian XAL5050-562MEB CAD Model

Description

Power Inductors - SMD 5.6uH Shld 20% 7.2A 25.8mOhms AECQ2
