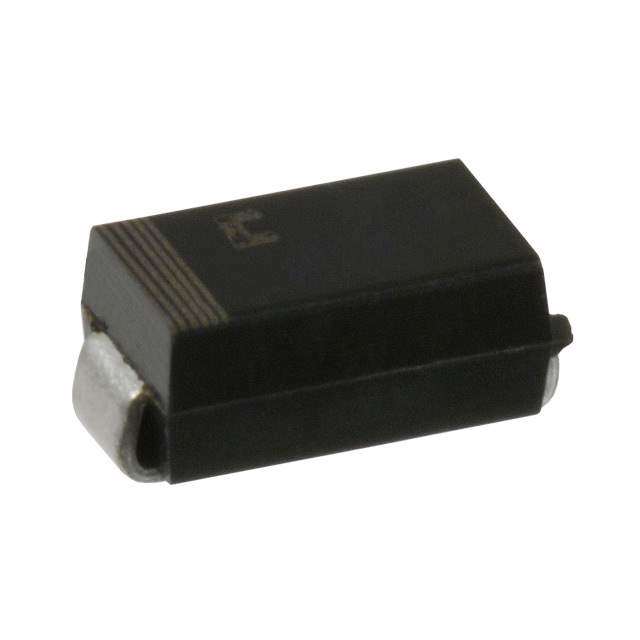

CDBA320-G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 20V
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 098770-CDBA320-G
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive, Power Management
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDBA320-G CAD Model

Description

CDBA320-G Diode

Built for superior efficiency, the CDBA320-G Schottky diode provides reliable performance for engineers focused on power density and efficiency.

  • Applications:
    • Industrial power systems
    • High-efficiency AC/DC converters
    • LED lighting systems
    • Wireless charging devices
  • Features and Benefits:
    • Low forward voltage: Ensures minimal energy wastage.
    • Robust surge performance: Handles peak current effectively.
    • Space-saving package: Supports modern electronic designs with compact size requirements.
    • Environmentally friendly design: Adheres to global environmental policies.

    The CDBA320-G is the go-to solution for applications requiring high performance with compact and efficient design attributes.
