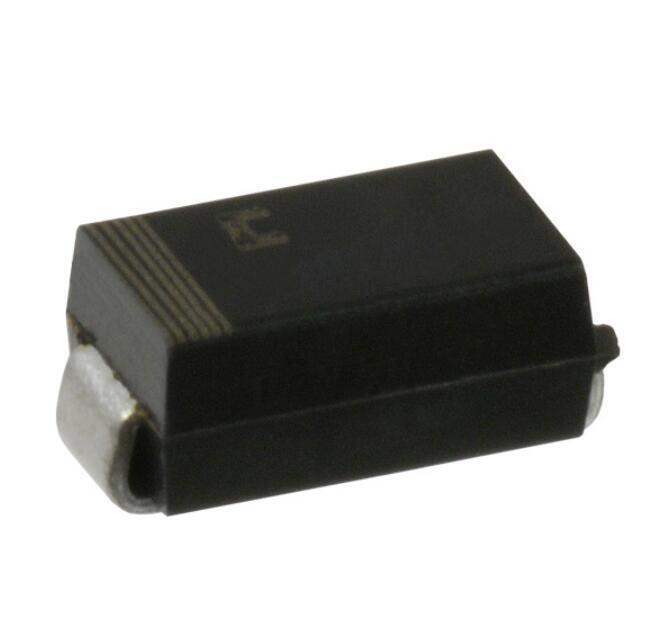

CDBA5200-HF Comchip Technology
Same model may have multiple batches, images only for reference.

CDBA5200-HF

Part No CDBA5200-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 5A DO214AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202920-CDBA5200-HF
Win Source Part Number Cross
Manufacturer Comchip Technology
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Ultra Librarian 3D Model Ultra Librarian CDBA5200-HF CAD Model

Description

● Low Profile surface mount applications in order to optimize board space.● Low power loss, high efficiency. ● High current capability, low forward voltage drop.● High surge capability. ● Guard ring for overvoltage protection.
