Same model may have multiple batches, images only for reference.

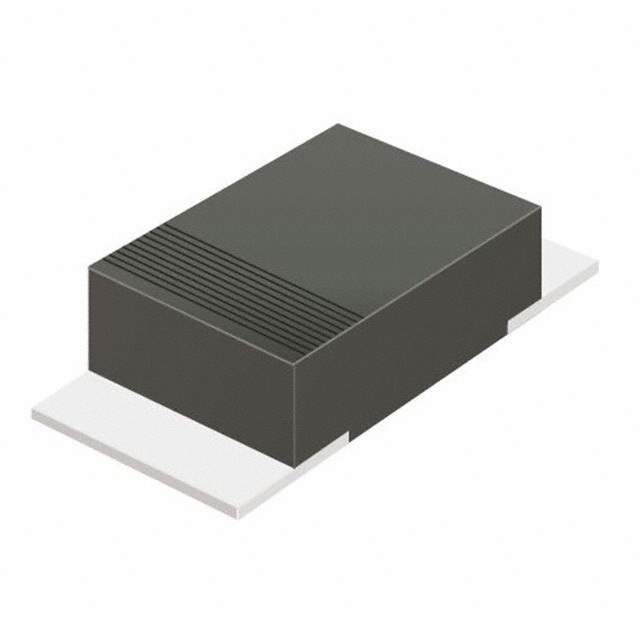

CDBFN140-HF Real Image
Same model may have multiple batches, images only for reference.

CDBFN140-HF

Part No CDBFN140-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 1A SOD323
Datasheet
CDBFN140-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 550mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-323
Operating Temperature - Junction -50°C to 125°C
Win Source Part Number 050184-CDBFN140-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CDBFN140-HF CAD Model

Description

Description

The CDBFN140-HF is engineered for high-switching frequency operations. Its enhanced construction ensures minimal signal loss and a stable electrical current, ideal for cutting-edge electronic implementations.

Features and Benefits

  • Advanced thermal management for reliability.
  • Minimized signal distortion.
  • Supports high-frequency operations.

Applications

  • Phase-locked loops (PLLs)
  • Frequency synthesizers
  • Switch-mode power supplies
