Same model may have multiple batches, images only for reference.

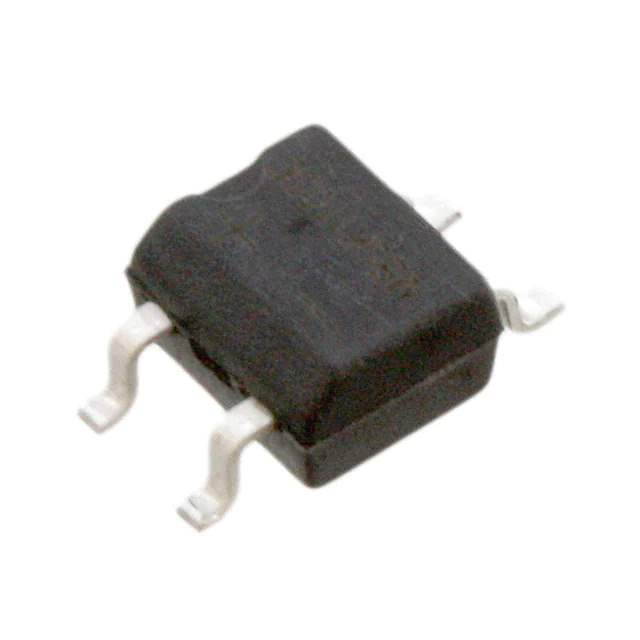

CDBHM140L-HF Real Image
Same model may have multiple batches, images only for reference.

CDBHM140L-HF

Part No CDBHM140L-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 40V 1A MBS
Datasheet
CDBHM140L-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Schottky
Voltage - Peak Reverse (Max) 40 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 1 A
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case TO-269AA, 4-BESOP
Supplier Device Package MBS
Base Product Number CDBHM140
Standard Package 2,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 577796-CDBHM140L-HF
Ultra Librarian 3D Model Ultra Librarian CDBHM140L-HF CAD Model

Description

The 577796-CDBHM140L-HF is a single-phase bridge rectifier diode with a Schottky technology design.

  • Technology: Schottky
  • Forward Voltage: 550mV @ 1A
  • Reverse Voltage: 40V
  • Current Rating: 1A
  • Package: TO-269AA, 4-BESOP
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer: Comchip Technology
  • Product Status: Active
