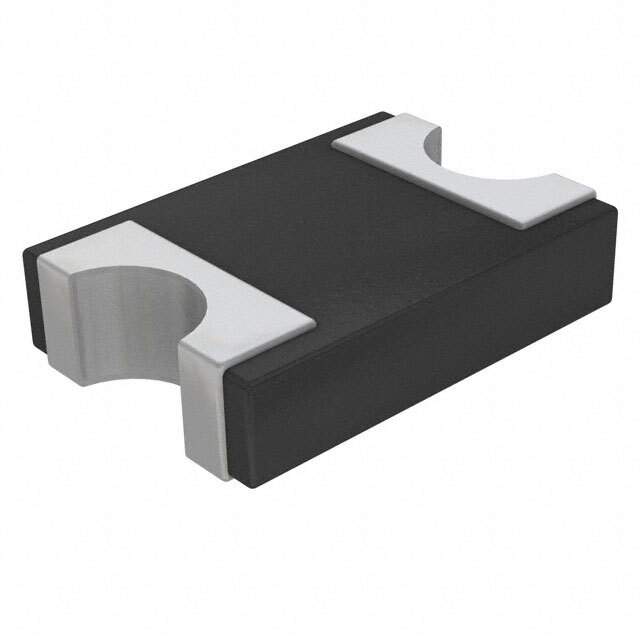

CDBMH360-HF Real Image
Same model may have multiple batches, images only for reference.

CDBMH360-HF

Part No CDBMH360-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 3A SOD123T
Datasheet
CDBMH360-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 3A (DC)
Voltage - Forward (Vf) (Max) @ If 700mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 200μA @ 60V
Mounting SMD (SMT)
Case / Package SOD-123T
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1028654-CDBMH360-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDBMH360-HF CAD Model

Description

The Comchip Technology CDBMH360-HF is a Schottky diode that is designed for use in a wide range of electronic applications.

  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 3A
  • Forward Voltage: 700mV @ 3A
  • Reverse Leakage Current: 200μA @ 60V
  • Recovery Speed: 200mA (Io)
  • Operating Temperature: -55°C to 150°C
  • Package: SOD-123T
  • Supply and Demand: in balance
