Same model may have multiple batches, images only for reference.

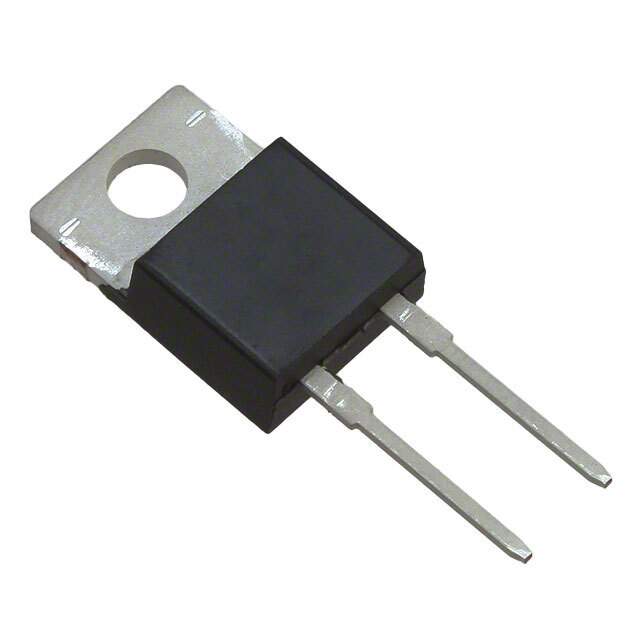

C3D08060A Real Image
Same model may have multiple batches, images only for reference.

C3D08060A

Part No C3D08060A
Manufacturer Cree Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 600V 8A TO220-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Cree Inc.
Standard Package 50
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Series Z-Rec
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 8A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8V @ 8A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 50µA @ 600V
Capacitance @ Vr F 441pF @ 0V 1MHz
Mounting Style Through Hole
Package TO-220-2
Manufacturer Device Package TO-220-2
Operating Temperature - Junction -55°C ~ 175°C
Catalog Silicon Carbide Schottky Diode
Win Source Part Number 088022-C3D08060A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian C3D08060A CAD Model

Description

Product Overview

The C3D08060A is a silicon carbide Schottky diode that delivers superior power efficiency and thermal performance. It's optimized for high-frequency applications and caters to modern electronic requirements.

Features and Benefits

  • Low Forward Voltage Drop: Enhances energy efficiency and reduces thermal loss.
  • Robust Design: Durable construction ensures long-term reliability.
  • Reduced Electromagnetic Interference (EMI): Minimizes radio frequency interference in sensitive applications.

Applications

  • Electric Vehicle Chargers: Supports efficient power conversion.
  • LED Lighting: Offers effective power management for lighting systems.
  • Industrial Power Systems: Enhances performance and efficiency in industrial applications.
