Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 5.1V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 75W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Base Product Number CPDU5
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 580209-CPDU5V0
Ultra Librarian 3D Model Ultra Librarian CPDU5V0 CAD Model

Description

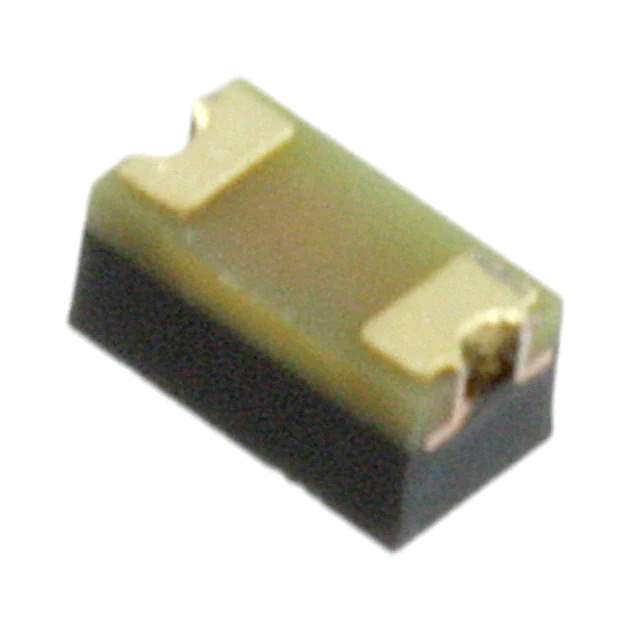

The CPDU5V0 is a bidirectional Zener diode designed for general-purpose transient voltage suppression applications.

  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 5.1V
  • Clamping Voltage: 15V @ Peak Pulse Power of 75W
  • Capacitance: 15pF @ 1MHz
  • Peak Pulse Current Rating: 5A for a 10/1000μs waveform
  • Package: Surface Mount 2-SMD, No Lead
  • Status: Active
  • Manufacturer: Comchip Technology
