Same model may have multiple batches, images only for reference.

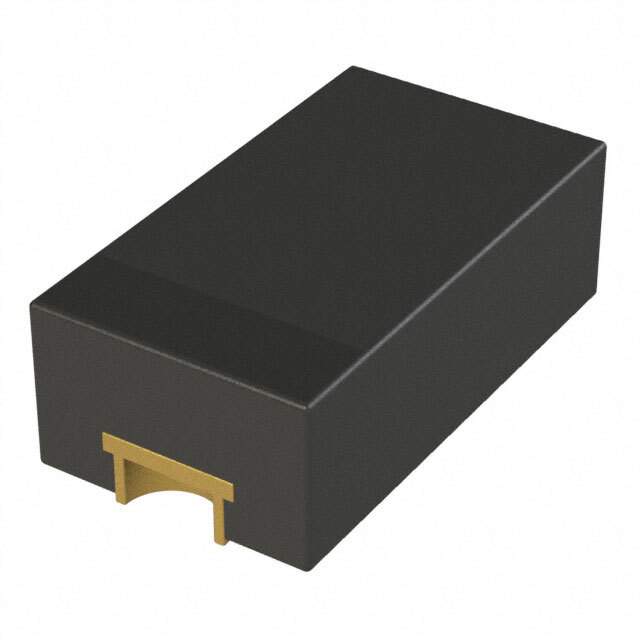

CPDU5V0USP-HF Real Image
Same model may have multiple batches, images only for reference.

CPDU5V0USP-HF

Part No CPDU5V0USP-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 25VC 0603
Datasheet
CPDU5V0USP-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.4V
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 75W
Applications General Purpose
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 0603/SOD-523F
Win Source Part Number 1030109-CPDU5V0USP-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CPDU5V0USP-HF CAD Model

Description

The Comchip Technology CPDU5V0USP-HF is a Zener diode designed for general purpose applications.

  • Manufacturer: Comchip Technology
  • Application: General Purpose Applications
  • Stand-off Voltage: 5V
  • Minimum Breakdown Voltage: 5.4V
  • Clamping Voltage: 25V
  • Peak Pulse Current: 3A (8/20μs)
  • Package: 0603/SOD-523F
  • Mounting Type: Surface Mount Applications
  • Category: Circuit Protection
  • Power Dissipation: 75W
  • Capacitance: 0.6pF @ 1MHz
  • Package Quantity: 4k pieces
