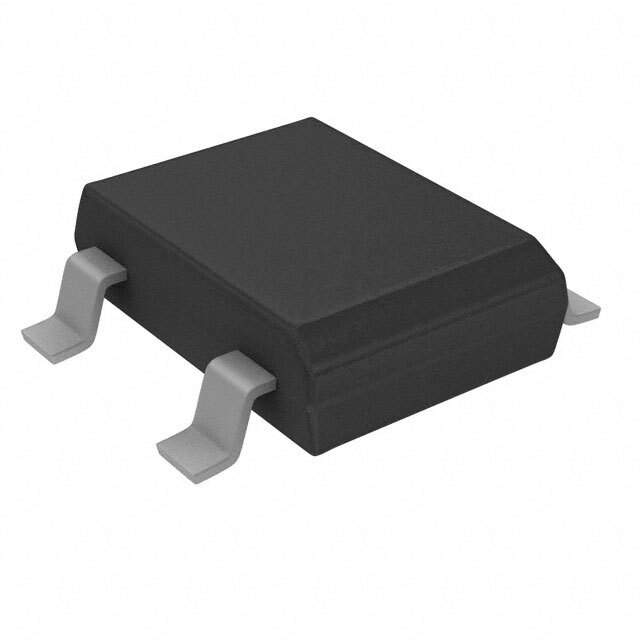

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 400V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DBS
Win Source Part Number 013800-DB104S
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian DB104S CAD Model

Description

DB104S - Bridge Rectifier

The DB104S is a single-phase bridge rectifier known for its efficiency and reliability in converting AC input into DC output. It features a peak reverse voltage of 400V and an average rectified current of 1A, making it suitable for various applications in power conversion.

  • Applications/Projects:
    • Power supply units
    • Battery chargers
    • LED lighting systems
  • Features and Benefits:
    • Compact design for space optimization
    • High surge current capability
    • Heat-resistant material for longevity
  • Additional Details:
    • Peak Forward Surge Current: 30A
    • Operating Temperature Range: -55°C to +150°C
    • Low forward voltage drop
