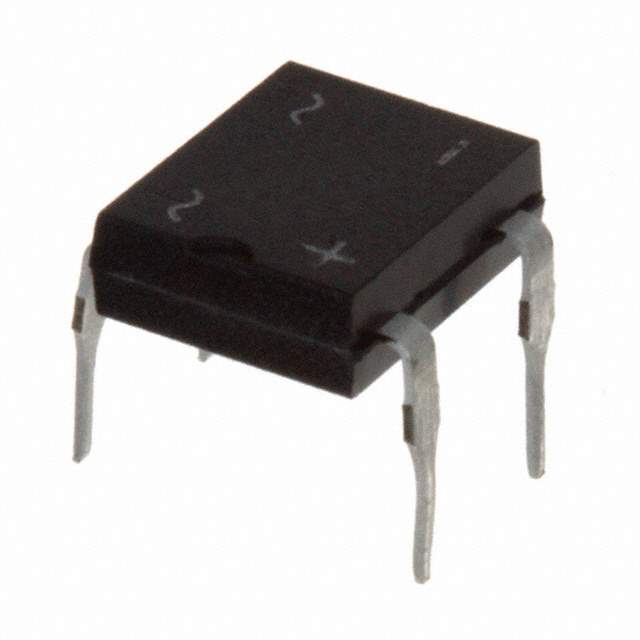

DB106-G Real Image
Same model may have multiple batches, images only for reference.

DB106-G

Part No DB106-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 1A 800V DB / Diode Rectifier Bridge Single 800V 1A 4-Pin Case DB Tube
Datasheet
DB106-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-EDIP (0.321", 8.15mm)
Manufacturer Package DB
Win Source Part Number 772504-DB106-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Family Name DB106
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian DB106-G CAD Model

Description

The Comchip Technology DB106-G is a single-phase standard diode.

  • Voltage Peak Reverse: 800V
  • Current Average Rectified: 1A
  • Current Reverse Leakage: 10μA @ 800V
  • Voltage Forward: 1.1V @ 1A
  • Mounting: Through Hole
  • Temperature Range: -55°C to 150°C
  • Package: 4-EDIP (0.321", 8.15mm)
  • Family: DB106
  • ECCN: EAR99
  • Manufacturer: Taiwan
  • Estimated EOL Date: 2027
  • Supply and Demand: Balanced
  • Quantity Per Package: 50
