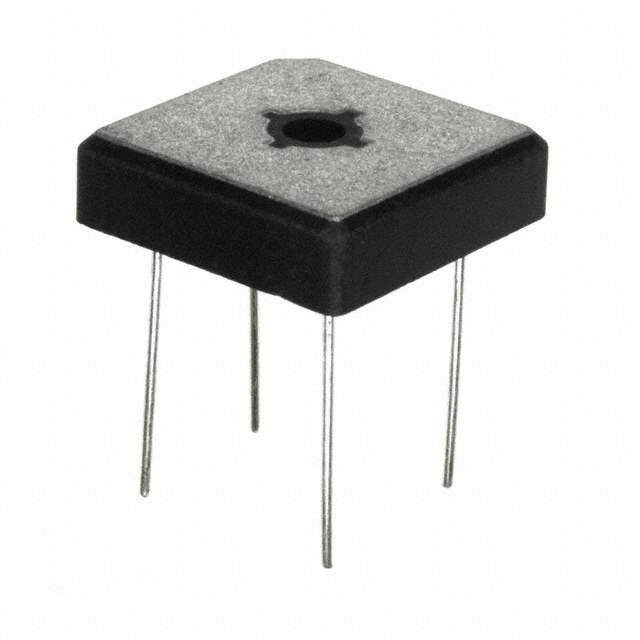

GBPC3506W-G Real Image
Same model may have multiple batches, images only for reference.

GBPC3506W-G

Part No GBPC3506W-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 600V 35A GBPCW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBPC-W
Win Source Part Number 108632-GBPC3506W-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian GBPC3506W-G CAD Model

Description

The GBPC3506W-G is a single-phase, through-hole diode designed for standard applications.

  • Average Rectified Current: 35A
  • Forward Voltage: 1.1V @ 17.5A
  • Reverse Leakage Current: 10μA @ 600V
  • Peak Reverse Voltage: 600V
  • Package: GBPC-W
  • Temperature Range: -55°C to 150°C (TJ)
  • Popularity: Medium
