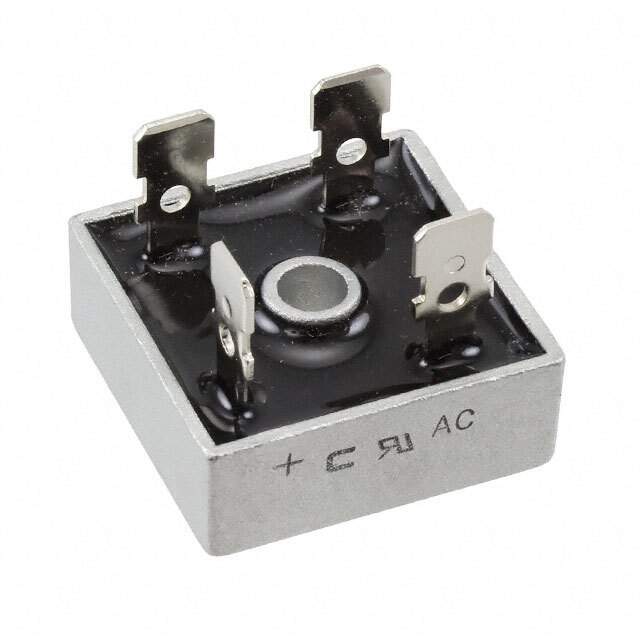

KBPC5006-G Real Image
Same model may have multiple batches, images only for reference.

KBPC5006-G

Part No KBPC5006-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE DIODE GPP 50A 600V KBPC / Diode Rectifier Bridge Single 600V 50A 4-Pin Case KBPC Box
Datasheet
KBPC5006-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 50A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 25A
Current - Reverse Leakage @ Vr 10μA @ 600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Package 4-Square, KBPC
Manufacturer Package KBPC
Win Source Part Number 777977-KBPC5006-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Family Name KBPC5006
Introduction Date December 25, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian KBPC5006-G CAD Model

Description

The Comchip Technology KBPC5006-G is a standard technology, single-phase diode. The specifications are as follows:

  • Current Average Rectified: 50A
  • Voltage Peak Reverse: 600V
  • Market Popularity: Medium
  • Supply and Demand Status: Balanced
