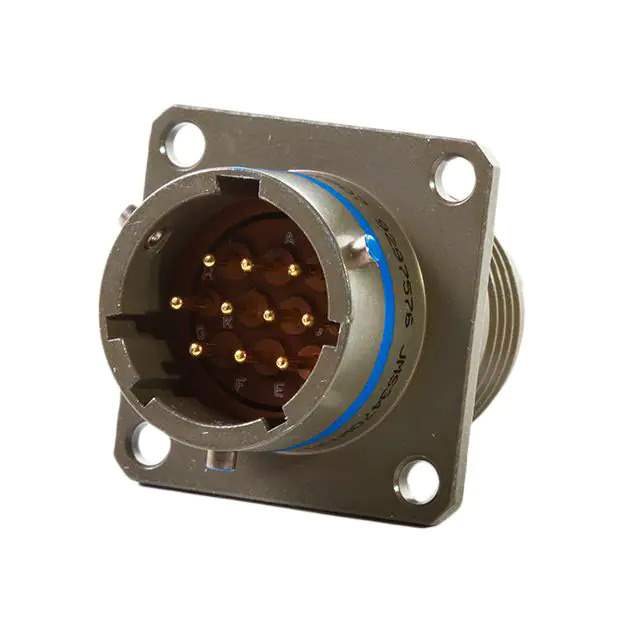

MS3470L18-8PW Real Image
Same model may have multiple batches, images only for reference.

MS3470L18-8PW

Part No MS3470L18-8PW
Manufacturer Conesys
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 8POS GOLD CRIMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conesys
Series Military, MIL-DTL-26482 Series II
Package Box
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 8
Shell Size - Insert 18-8
Mounting Type Panel Mount
Mounting Feature Flange
Termination Crimp
Fastening Type Bayonet Lock
Orientation W
Primary Material Metal
Shell Material Aluminum Alloy
Shell Finish Electroless Nickel
Contact Finish - Mating Gold
Temperature Range - Operating -55°C ~ 200°C
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Base Product Number MS3470L18
Standard Package 1 pcs
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 928133-MS3470L18-8PW
Ultra Librarian 3D Model Ultra Librarian MS3470L18-8PW CAD Model

Description

The 928133-MS3470L18-8PW is a circular connector assembly from the MIL-DTL-26482 Series II military series.

  • Series: MIL-DTL-26482 Series II military series
  • Connector Type: Receptacle
  • Contact Gender: Male Pins
  • Fastening Type: Bayonet Lock
  • Positions: 8
  • Mounting: Panel Mount
  • Shell Size: 18-8
  • Shell Material: Aluminum Alloy
  • Shell Finish: Electroless Nickel
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Operating Temperature: -55°C to 200°C
  • Manufacturer: Conesys
