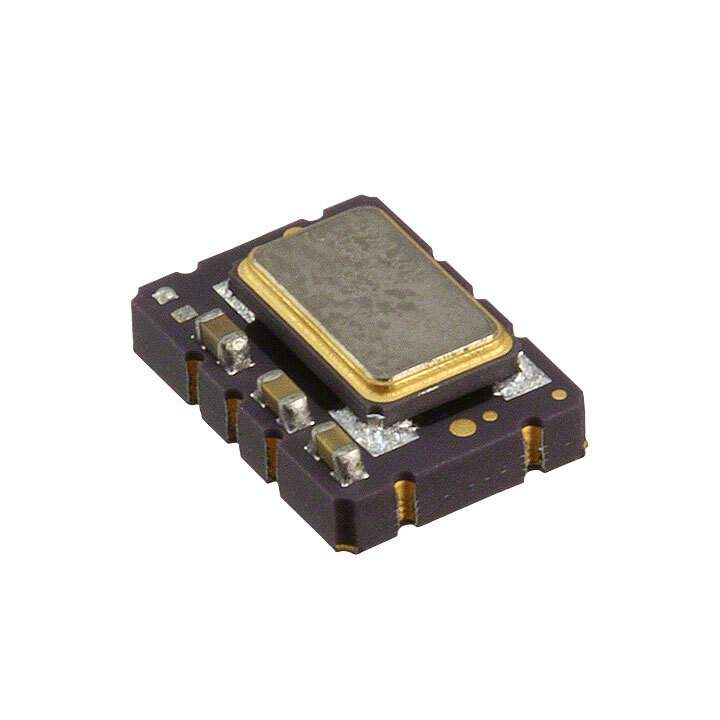

DV75C-020.0M Real Image
Same model may have multiple batches, images only for reference.

DV75C-020.0M

Part No DV75C-020.0M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC TCXO 20.0000MHZ LVCMOS / 20 MHz TCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
Datasheet
DV75C-020.0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Connor Winfield
Series DV75C
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 20 MHz
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±280ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339104-DV75C-020.0M
Ultra Librarian 3D Model Ultra Librarian DV75C-020.0M CAD Model

Description

The DV75C-020.0M is a TCXO oscillator from Connor Winfield.

  • Frequency: 20 MHz
  • Output: LVCMOS
  • Frequency Stability: ±280ppb
  • Current Supply: 6mA
  • Voltage Supply: 3.3V
  • Mounting Type: surface mount
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • Base Resonator: crystal
  • Absolute Pull Range (APR): not specified
  • Package: tape and reel
  • Standard Package: 250
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
  • HTSUS: 8542.39.0001
