Same model may have multiple batches, images only for reference.

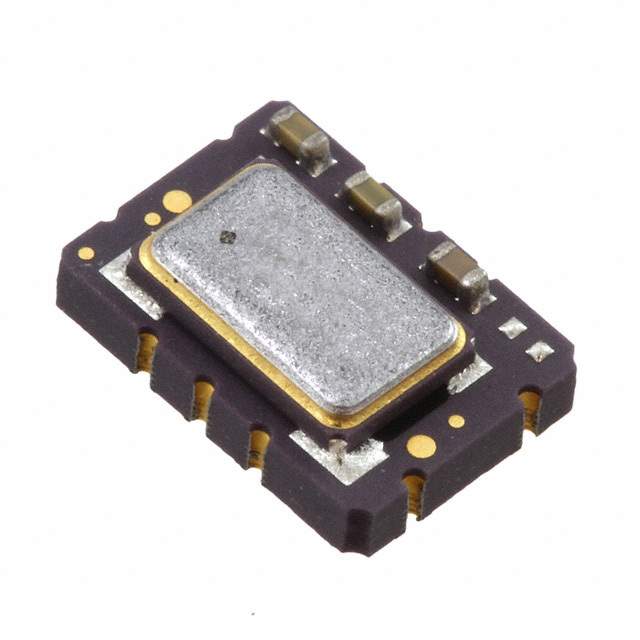

TB524-100.0M Real Image
Same model may have multiple batches, images only for reference.

TB524-100.0M

Part No TB524-100.0M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC VCTCXO 100.0000MHZ LVCM / 100 MHz VCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Datasheet
TB524-100.0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Connor Winfield
Series TB
Package Tape & Reel
Base Resonator Crystal
Type VCTCXO
Frequency 100 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±1ppm
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Max) 12mA
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1351689-TB524-100.0M
Ultra Librarian 3D Model Ultra Librarian TB524-100.0M CAD Model

Description

The TB524-100.0M VCTCXO oscillator is a high-performance, surface-mount device that is suitable for use in a variety of applications.

  • Frequency: 100 MHz
  • Frequency Stability: ±1ppm
  • Package Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height (Seated): 0.094" (2.40mm)
  • Operating Temperature: 0°C to 70°C
  • Voltage - Supply: 3.3V
  • Current - Supply (Max): 12mA
  • Output: LVCMOS
  • Function: Enable/Disable
  • Manufacturer: Connor Winfield
  • Package: 10-SMD, No Lead
