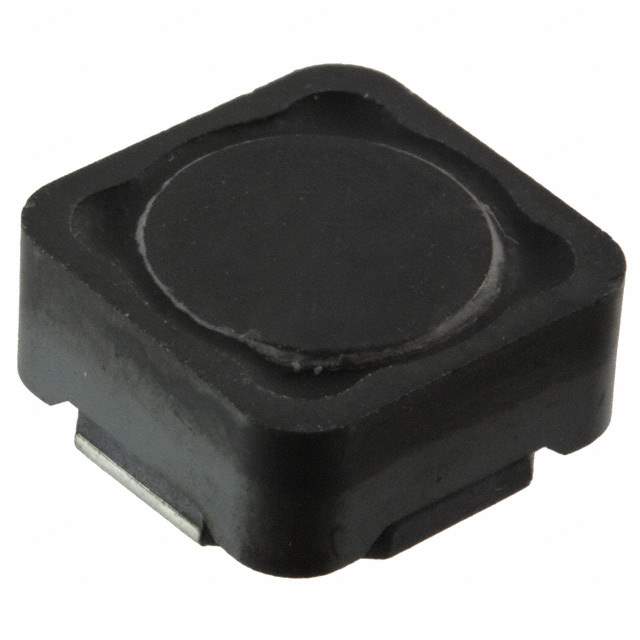

DRA125-220-R Real Image
Same model may have multiple batches, images only for reference.

DRA125-220-R

Part No DRA125-220-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 3.95A 35 MOHM SMD / High Power Density, High Efficiency, Shielded Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 3.95A
Current - Saturation 4.74A
Shielding Shielded
DC Resistance (DCR) 35mOhm
Temperature Range - Operating -40°C ~ 165°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809290-DRA125-220-R
Ultra Librarian 3D Model Ultra Librarian DRA125-220-R CAD Model

Description

The Eaton - Electronics Division DRA125-220-R is a high-quality electronic component that is designed to provide reliable performance in a variety of applications.

  • Type: Wirewound
  • Mounting: SMD
  • Shielded: Yes
  • Inductance: 22μH
  • Tolerance: ±20%
  • Current Saturation: 4.74A
  • DC Resistance (DCR): 35mOhm
  • Temperature Range: -40°C to 165°C
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height - Seated (Max): 0.236" (6.00mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 600
  • MSL Level: 1 (Unlimited)
  • Current Rating (amps): 3.95A
  • Inductance Frequency - Test: 100kHz
