Same model may have multiple batches, images only for reference.

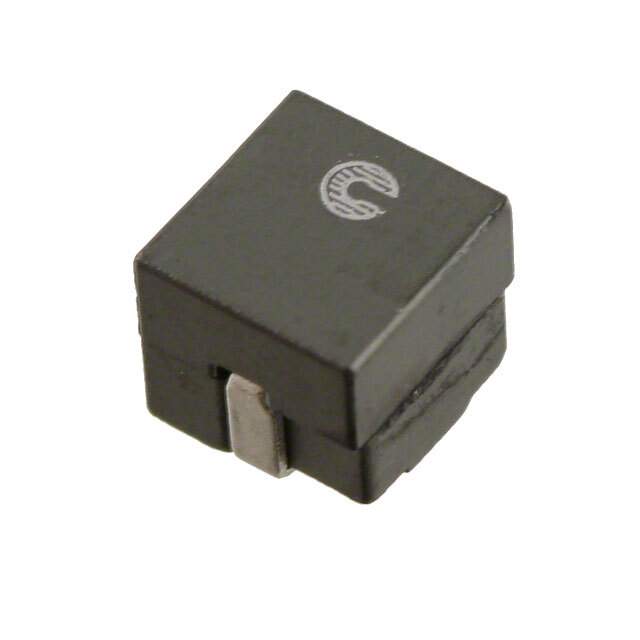

FP0807R1-R16-R Real Image
Same model may have multiple batches, images only for reference.

FP0807R1-R16-R

Part No FP0807R1-R16-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 160NH 49A 0.5 MOHM SMD / High Current, High Frequency, Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 160nH
Tolerance ±10%
Current Rating (Amps) 49A
Current - Saturation 48A
Shielding Unshielded
DC Resistance (DCR) 0.5mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.299" L x 0.291" W (7.60mm x 7.40mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809626-FP0807R1-R16-R
Ultra Librarian 3D Model Ultra Librarian FP0807R1-R16-R CAD Model

Description

The Eaton - Electronics Division 809626-FP0807R1-R16-R is a wirewound inductor manufactured by Eaton - Electronics Division.

  • Mounting: SMD
  • Inductance: 160nH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Saturation Current: 48A
  • DC Resistance: 0.5mOhm
  • Temperature Range: -40°C to 125°C
  • Height: 0.276" (7.00mm)
  • Manufacturer Pack Quantity: 600
  • MSL Level: 1 (Unlimited)
  • Dimension: 0.299" L x 0.291" W (7.60mm x 7.40mm)
  • Current Rating: 49A
  • Inductance Frequency Test: 100kHz
