Same model may have multiple batches, images only for reference.

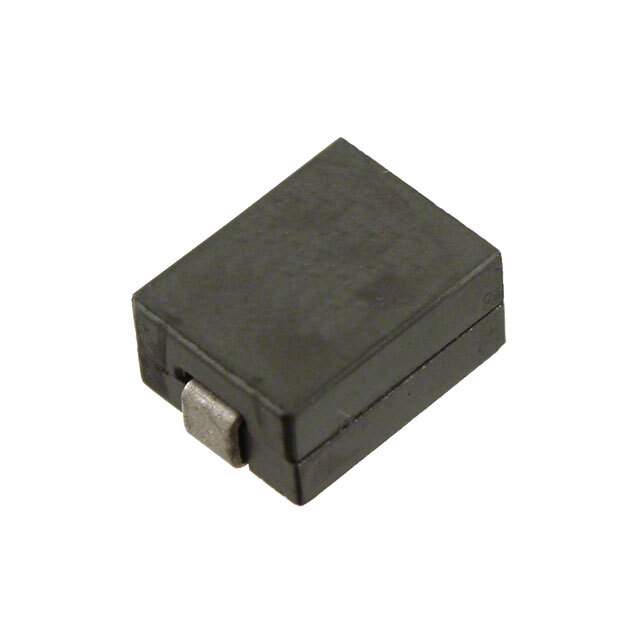

FP1105R1-R22-R Real Image
Same model may have multiple batches, images only for reference.

FP1105R1-R22-R

Part No FP1105R1-R22-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 226NH 46A 0.35 MOHM / High Current, Low-Profile Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 226nH
Tolerance ±10%
Current Rating (Amps) 46A
Current - Saturation 39A
Shielding Unshielded
DC Resistance (DCR) 0.35mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.433" L x 0.315" W (11.00mm x 8.00mm)
Height - Seated (Maximum) 0.193" (4.90mm)
Manufacturer Pack Quantity 900
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804886-FP1105R1-R22-R
Ultra Librarian 3D Model Ultra Librarian FP1105R1-R22-R CAD Model

Description

The Eaton - Electronics Division 804886-FP1105R1-R22-R is a wirewound inductor that comes with an inductance of 226nH, a tolerance of ±10%, and a DC resistance of 0.35mOhm.

  • Core Material: Ferrite
  • Shielding: Unshielded
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Balanced
  • Popularity: Medium
  • Manufacturer Package: Nonstandard
  • Height: 0.193" (4.90mm)
  • Current Rating: 46A
  • Inductance Frequency: 100kHz
