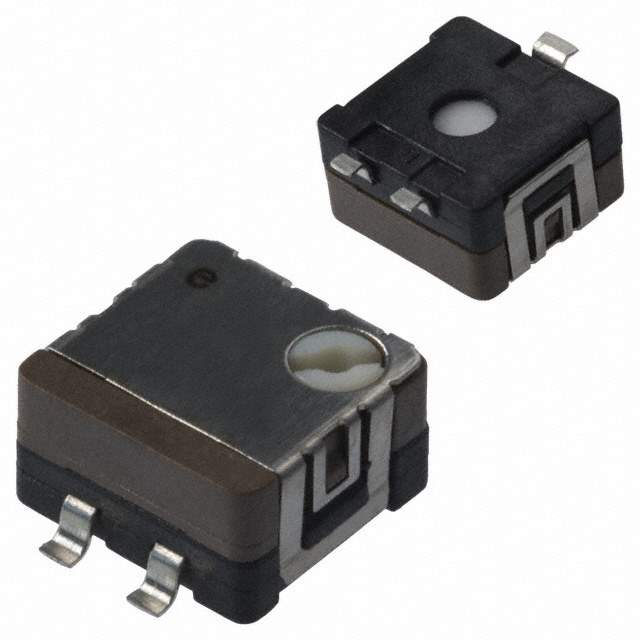

The ST-7ETB200OHM(201) is a trimming potentiometer manufactured by Copal Electronics. It is designed for fine-tuning and adjustment within electronic circuits. This trimmer provides precise control over resistance, enabling accurate calibration and optimization of various electronic systems. It is commonly used in a wide range of applications where precise voltage or current control is essential.

Applications:

• Audio Equipment Calibration
• Power Supply Voltage Adjustment
• Sensor Calibration
• Servo Motor Control
• Instrumentation and Measurement Devices

Features:

• Compact Size: Space-saving design for dense circuit boards.
• Precise Resistance Adjustment: Allows for fine-tuning and accurate calibration.
• High Stability: Maintains consistent performance over time.
• Wide Operating Temperature Range: Functions reliably in varying environmental conditions.
• Sealed Construction: Protects against dust, moisture, and other contaminants.

Benefits:

• Improved Accuracy: Enables precise calibration and adjustment of electronic circuits, leading to more accurate measurements and control.
• Increased Reliability: Stable performance ensures consistent operation and minimizes the need for frequent recalibration.
• Enhanced System Performance: Optimizes the performance of electronic devices and systems by allowing precise adjustment of critical parameters.
• Reduced Maintenance: Sealed construction and stable performance minimize the need for maintenance and recalibration.
• Cost-Effective Solution: Provides a reliable and accurate adjustment mechanism at a reasonable cost.

Additional Details:

The ST-7ETB200OHM(201) has a resistance value of 200 Ohms (201 indicates 20 x 10^1). The power rating and operating voltage are crucial specifications for ensuring proper operation. Detailed specifications, including resistance tolerance, temperature coefficient, and mechanical dimensions, can be found in the Copal Electronics datasheet. It typically uses through-hole mounting.
