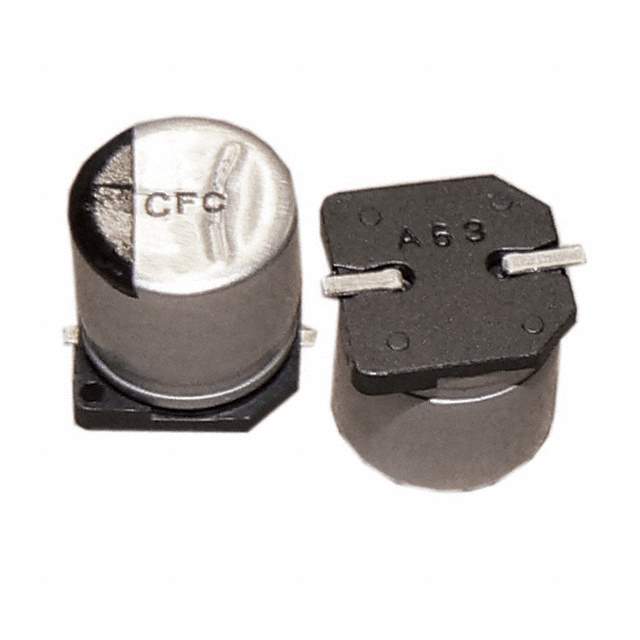

AFC337M25G24T-F Real Image
Same model may have multiple batches, images only for reference.

AFC337M25G24T-F

Part No AFC337M25G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V SMD / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 700mOhm @ 120Hz 1000 Hrs @ 105°C
Datasheet
AFC337M25G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series AFC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 700mOhm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 502.5 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 150 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349833-AFC337M25G24T-F
Ultra Librarian 3D Model Ultra Librarian AFC337M25G24T-F CAD Model

Description

The AFC series aluminum electrolytic capacitor is a high-quality component that is designed for automotive, bypass, and decoupling applications from Cornell Dubilier Electronics (CDE).

  • Capacitance: 330 µF
  • Voltage Rating: 25 V
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Package: Radial, Can-SMD
  • ESR: 700mOhm @ 120Hz
  • Lifetime: 1000 hours @ 105°C
  • Polarization: Polarized
  • Height: 0.402" (10.20mm)
  • Dimensions: 0.394" Dia (10.00mm)
