Same model may have multiple batches, images only for reference.

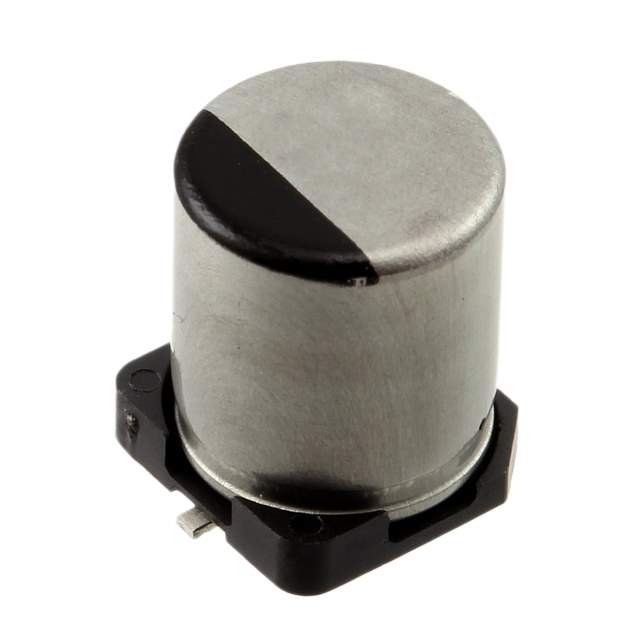

AHA227M10X16T-F Real Image
Same model may have multiple batches, images only for reference.

AHA227M10X16T-F

Part No AHA227M10X16T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 10V SMD / Cap Aluminum Lytic 220uF 10V 20% (6.3 X 7.9mm) SMD 1.7 Ohm 105mA 1000h 105°C Automotive T/R
Datasheet
AHA227M10X16T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 220μF
Tolerance ±20%
Voltage Rating DC 10V
ESR (Equivalent Series Resistance) 1.7 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 105mA @ 120Hz
Ripple Current - High Frequency 178.5mA @ 10kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777741-AHA227M10X16T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA227M10X16T-F CAD Model

Description

The AHA227M10X16T-F is a radial, can - SMD capacitor from Cornell Dubilier Electronics (CDE).

  • Capacitance: 220μF
  • Tolerance: +/- 20%
  • Equivalent Series Resistance (ESR): 1.7 Ohm @ 120Hz
  • Ripple Current: 105mA @ 120Hz
  • Ripple Current: 178.5mA @ 10kHz
  • Voltage Rating: 10V
  • Polar: Yes
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 1000 Hrs @ 105°C
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Height: 0.303” (7.70mm)

The AHA227M10X16T-F is part of the AHA series and is ideal for use in general electronic applications.
