Same model may have multiple batches, images only for reference.

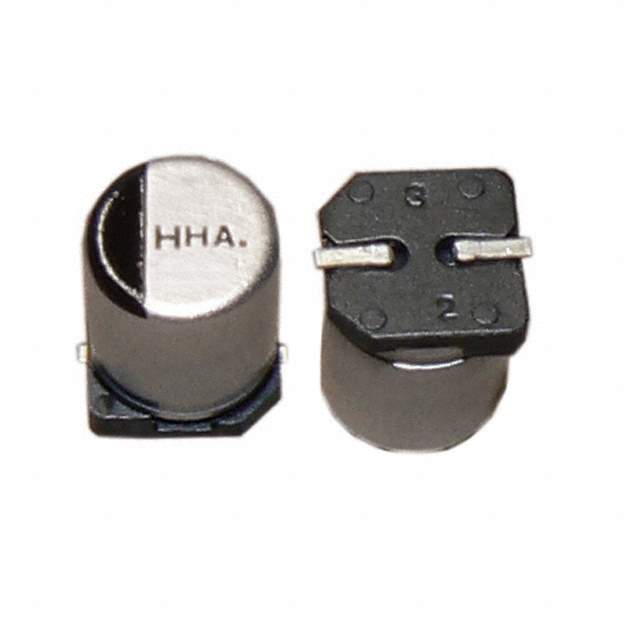

AHA476M06B12T-F Real Image
Same model may have multiple batches, images only for reference.

AHA476M06B12T-F

Part No AHA476M06B12T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 6.3V SMD / Cap Aluminum Lytic 47uF 6.3V 20% (4 X 5.4mm) SMD 12.3 Ohm 36mA 1000h 105°C Automotive T/R
Datasheet
AHA476M06B12T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 6.3V
ESR (Equivalent Series Resistance) 12.3 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 36mA @ 120Hz
Ripple Current - High Frequency 61.2mA @ 10kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777751-AHA476M06B12T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 30, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA476M06B12T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AHA series capacitor is a general-purpose capacitor with a capacitance of 47μF and a voltage rating of 6.3V.

  • Capacitance: 47μF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 12.3 Ohm @ 120Hz
  • Polarized: Yes
  • Ripple Current (Low Frequency): 36mA @ 120Hz
  • Ripple Current (High Frequency): 61.2mA @ 10kHz
  • Mounting Type: SMD
  • Package: Radial
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Dimension: 0.157" Dia (4.00mm)
  • Height: 0.213" (5.40mm)
  • Operating Temperature Range: -55°C ~ 105°C
  • Packaging: Reel
  • Introduction Date: March 30, 2009
  • Estimated EOL Date: 2027
