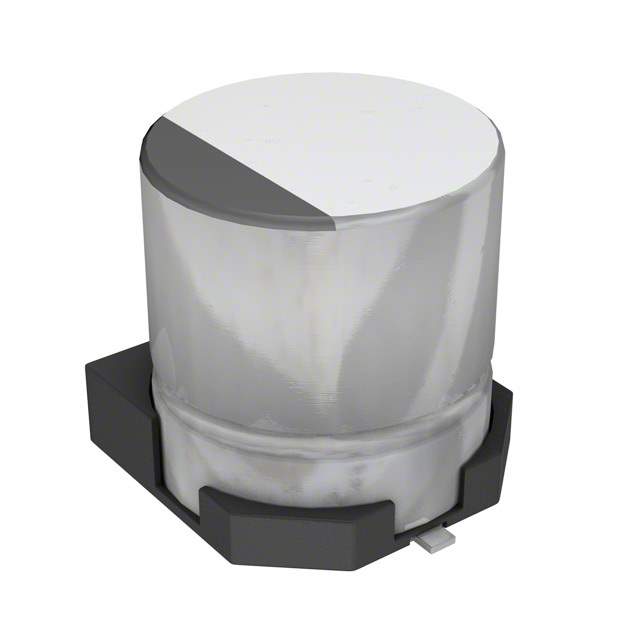

Same model may have multiple batches, images only for reference.

AVS226M25C12T-F

Name: AVS226M25C12T-F
Brand: Cornell Dubilier Electronics (CDE)
SKU: 777764
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AVS226M25C12T-F
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 25V SMD / Cap Aluminum Lytic 22uF 25V 20% (5 X 5.4mm) SMD 15.1 Ohm 35mA 2000h 85°C Automotive T/R
Datasheet	AVS226M25C12T-F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	AVS
Packaging	Reel package
Capacitance	22μF
Tolerance	±20%
Voltage Rating DC	25V
ESR (Equivalent Series Resistance)	15.1 Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	35mA @ 120Hz
Ripple Current - High Frequency	59.5mA @ 10kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Maximum)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	SMD
Package	Radial, Can - SMD
Win Source Part Number	777764-AVS226M25C12T-F
Popularity	Medium
Supply and Demand Status	Limited
Family Name	AVS
Introduction Date	March 05, 2002
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian AVS226M25C12T-F CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) 777764-AVS226M25C12T-F is a high-quality capacitor that is designed to meet the needs of those looking for a reliable solution.

Capacitance: 22μF
Tolerance: ±20%
ESR (Equivalent Series Resistance): 15.1 Ohm @ 120Hz
Voltage Rating: 25VDC
Operating Temperature Range: -40°C to 85°C
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Series: AVS
Package Size: Radial, Can - SMD
