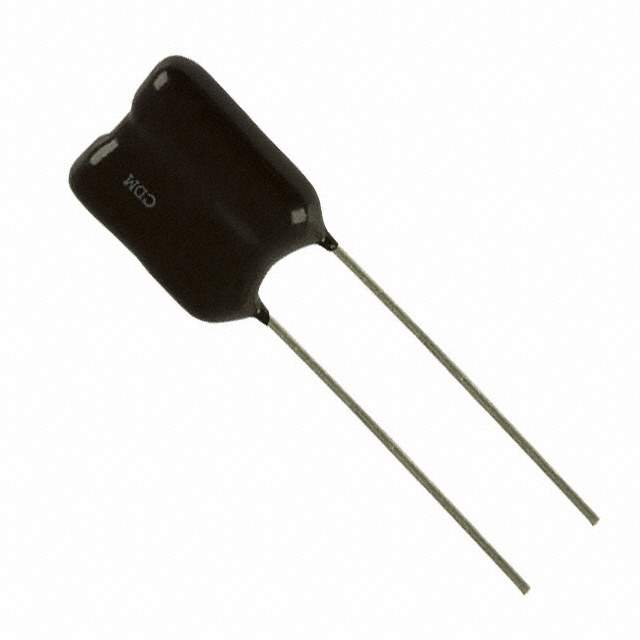

CD30FD223JO3F Real Image
Same model may have multiple batches, images only for reference.

CD30FD223JO3F

Part No CD30FD223JO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 0.022UF 5% 500V RADIAL  /  0.022 µF Mica Capacitor 500 V Radial
Datasheet
CD30FD223JO3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CD30
Package Bulk
Capacitance 0.022 µF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 0.437" (11.10mm)
Features General Purpose
Dimension 0.831" L x 0.461" W (21.10mm x 11.70mm)
Height - Seated (Max) 0.929" (23.60mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Other Names CD30FD223J03F,CD30FD223JO3F-ND,338-3880
Standard Package 50
Win Source Part Number 998755-CD30FD223JO3F
Ultra Librarian 3D Model Ultra Librarian CD30FD223JO3F CAD Model

Description

The CD30FD223JO3F is a radial mica and PTFE capacitor from Cornell Dubilier Electronics (CDE) with a capacitance of 0.022 µF and a voltage rating of 500 V.

  • Tolerance: ±5%
  • Dielectric Material: mica
  • Type: non-polarized capacitor
  • Applications: general-purpose applications
  • Temperature Range: -55°C to 125°C
  • Mounting Type: through-hole
  • Height: 0.929" (23.60mm)
  • Lead Spacing: 0.437" (11.10mm)
  • Series: CD30
  • Packaging: bulk
  • Standard Package: 50
