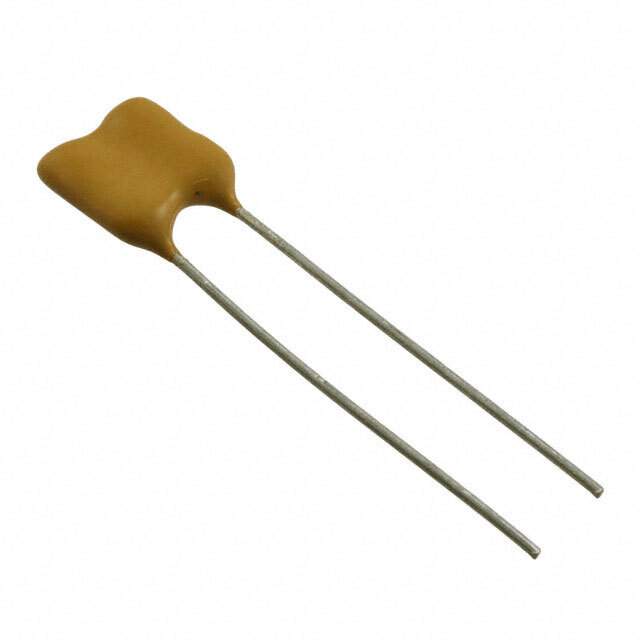

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 1 kV
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 150°C
Mounting Through Hole
Case / Package Radial
Lead Spacing 0.232" (5.90mm)
Features RF, High Q, Low Loss
Size / Dimension 0.429" L x 0.150" W (10.90mm x 3.80mm)
Height - Seated (Max) 0.461" (11.70mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Other Part Number CDV16FF101J03F,338-3094,CDV16FF101JO3F-ND
Standard Package 50
Win Source Part Number 1328491-CDV16FF101JO3F
Ultra Librarian 3D Model Ultra Librarian CDV16FF101JO3F CAD Model

Description

The CDV16FF101JO3F is a high-quality mica and PTFE capacitor from Cornell Dubilier Electronics (CDE) designed for RF applications.

  • Capacitance: 100 pF
  • Voltage Rating: 1 kV
  • Case/Package: radial
  • Mounting: through-hole
  • Lead Spacing: 0.232" (5.90mm)
  • Dielectric Material: mica
  • Operating Temperature: -55°C to 150°C
  • Packaging: bulk
  • Standard Package: 50
