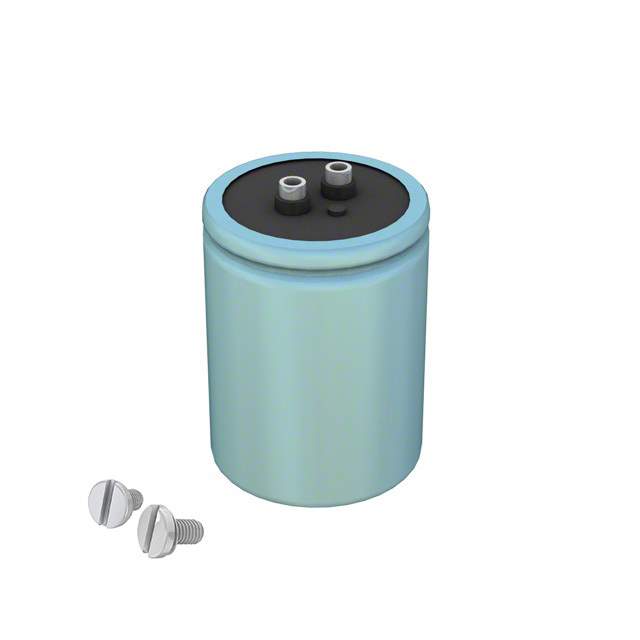

CGH172T250V2L Real Image
Same model may have multiple batches, images only for reference.

CGH172T250V2L

Part No CGH172T250V2L
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 1700UF 250V SCREW / Cap Aluminum Lytic 1700uF 250V -10% to 50% (50.8 X 66.675mm) Screw Terminal 65.8 Ohm 4000mA 1000h 85°C
Datasheet
CGH172T250V2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGH
Packaging Bulk
Capacitance 1700μF
Tolerance -10%, +50%
Voltage Rating DC 250V
ESR (Equivalent Series Resistance) 65.8 mOhm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 4A @ 120Hz
Ripple Current - High Frequency 4.92A @ 10kHz
Dimension 2.000" Dia (50.80mm)
Height - Seated (Maximum) 2.625" (66.68mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 777799-CGH172T250V2L
Popularity Medium
Supply and Demand Status Limited
Family Name CGH
Introduction Date September 15, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGH172T250V2L CAD Model

Description

The Cornell Dubilier Electronics (CDE) CGH series capacitor is a radial, can-screw terminal capacitor designed for general applications.

  • Capacitance: 1700μF
  • Voltage Rating DC: 250V
  • Tolerance: -10%, +50%
  • ESR: 65.8 mOhm @ 120Hz
  • Ripple Current: 4A @ 120Hz and 4.92A @ 10kHz
  • Temperature Range: -40℃ to 85℃
  • Lifetime: 1000 Hrs @ 85℃
  • Polarization: Polarized
  • Dimension: 2.000" Dia (50.80mm)
  • Height: 2.625" (66.68mm)
  • Estimated EOL Date: 2027
