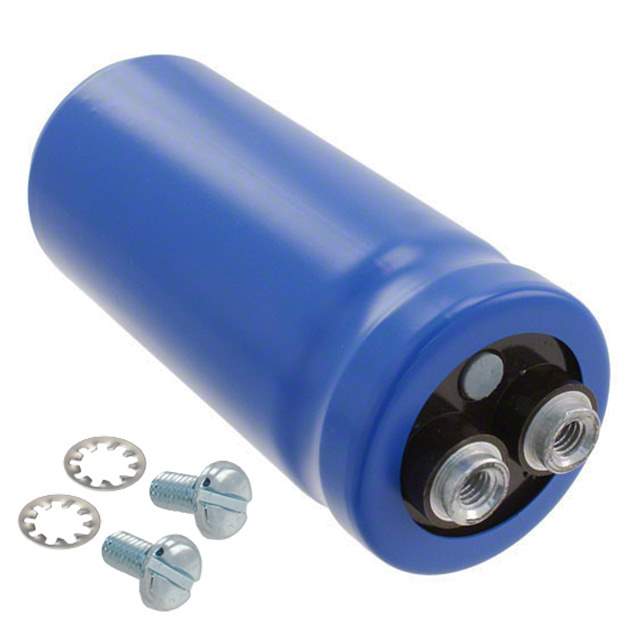

Same model may have multiple batches, images only for reference.

CGS161T500R2C

Name: CGS161T500R2C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 775436
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CGS161T500R2C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 160UF 500V SCREW / Cap Aluminum Lytic 160uF 500V -10% to 50% (34.93 X 53.98mm) Screw Terminal 0.61 Ohm 1100mA 2000h 85°C
Datasheet	CGS161T500R2C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	CGS
Packaging	Bulk
Capacitance	160μF
Tolerance	-10%, +50%
Voltage Rating DC	500V
ESR (Equivalent Series Resistance)	610 mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	1.1A @ 120Hz
Ripple Current - High Frequency	1.65A @ 10kHz
Dimension	1.375" Dia (34.93mm)
Height - Seated (Maximum)	2.125" (53.98mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	775436-CGS161T500R2C
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CGS
Introduction Date	August 30, 2005
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian CGS161T500R2C CAD Model

Alternative Products

Description

The CGS161T500R2C from Cornell Dubilier Electronics (CDE) is a capacitor from the CGS series.

Type: Radial, Can-Screw-Terminal
Capacitance: 160μF
Voltage Rating DC: 500V
Tolerance: -10%, +50%
ESR: 610 mOhm @ 120Hz
Lifetime: 2000 Hrs @ 85℃
Polarized: Yes
Diameter: 1.375" Dia (34.93mm)
Ripple Current: 1.1A @ 120Hz (low frequency), 1.65A @ 10kHz (high frequency)
Height: 2.125" (53.98mm)
Introduction Date: August 30, 2005
Estimated EOL Date: 2027
Supply and Demand Status: Limited
