Same model may have multiple batches, images only for reference.

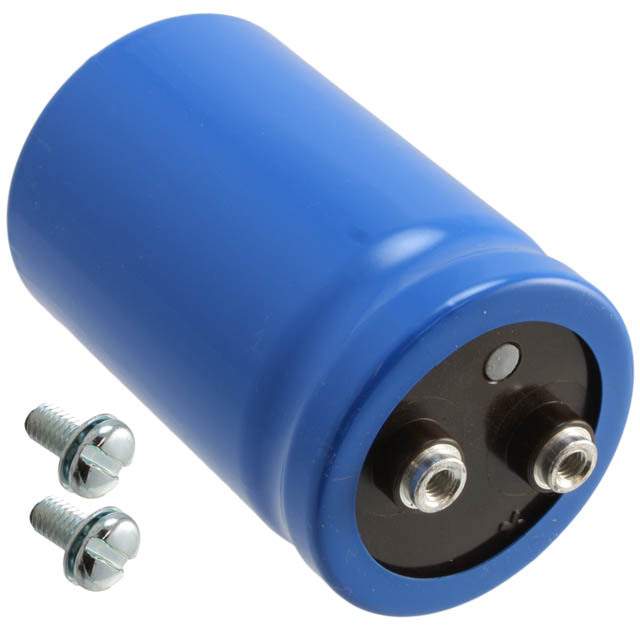

CGS223U040V3C Real Image
Same model may have multiple batches, images only for reference.

CGS223U040V3C

Part No CGS223U040V3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 22000UF 40V SCREW  /  22000 µF 40 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 31mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet
CGS223U040V3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CGS
Package Bulk
Capacitance 22000 µF
Tolerance -10%, +75%
Voltage - Rated 40 V
ESR (Equivalent Series Resistance) 31mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 7.1 A @ 120 Hz
Ripple Current @ High Frequency 9.23 A @ 10 kHz
Lead Spacing 0.875" (22.22mm)
Dimension 2.000" Dia (50.80mm)
Height - Seated (Max) 3.125" (79.38mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0055
Other Names 338-1443,CGS223U040V3C-ND
Standard Package 1
Win Source Part Number 1010428-CGS223U040V3C
Ultra Librarian 3D Model Ultra Librarian CGS223U040V3C CAD Model

Description

The CGS series of aluminum electrolytic capacitors from Cornell Dubilier Electronics (CDE) is a range of capacitors that are designed for general-purpose applications.

  • Capacitance: 22000 µF
  • Voltage Rating: 40V
  • Tolerance: -10%, +75%
  • ESR: 31mOhm @ 120Hz
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Dimension: 2.000" Dia (50.80mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C to 85°C
