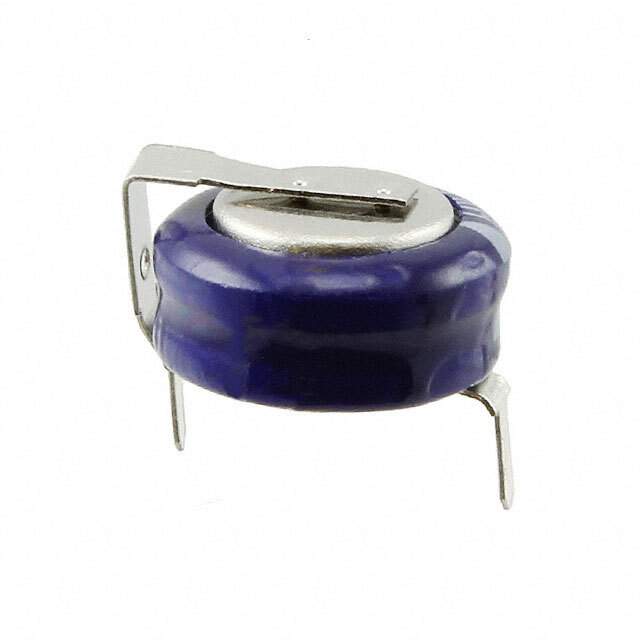

EDLSD224H5R5C Real Image
Same model may have multiple batches, images only for reference.

EDLSD224H5R5C

Part No EDLSD224H5R5C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 220MF 5.5V T/H / 220 mF (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal 75Ohm @ 1kHz 1000 Hrs @ 70°C
Datasheet
EDLSD224H5R5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SD
Package Bulk
Product Status Obsolete
Capacitance 220 mF
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 75Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Axial, Can - Horizontal
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.453" Dia (11.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Temperature Range - Operating -25°C ~ 70°C
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1339628-EDLSD224H5R5C
Ultra Librarian 3D Model Ultra Librarian EDLSD224H5R5C CAD Model

Description

The Cornell Dubilier Electronics (CDE) SD series capacitor is an axial, can-horizontal type of electric double layer capacitor (EDLC) with a capacitance of 220 mF and a voltage rating of 5.5 V.

  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Series: SD
  • Capacitance: 220 mF
  • Voltage Rating: 5.5 V
  • Tolerance: -
  • ESR: 75Ohm @ 1kHz
  • Lifetime: 1000 hours @ 70°C
  • Mounting Type: Through-Hole
  • Package Size/Dimension: 0.453" Dia (11.50mm)
  • Height-Seated (Max): 0.236" (6.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Operating Temperature: -25°C to 70°C
  • Status: Obsolete
