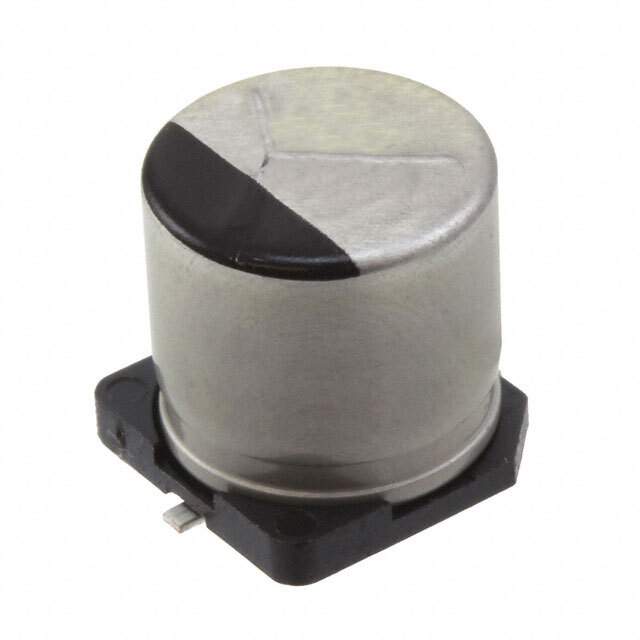

HZA566M063G24T-F Real Image
Same model may have multiple batches, images only for reference.

HZA566M063G24T-F

Part No HZA566M063G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 56UF 63V SMD / 56 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 10000 Hrs @ 105°C
Datasheet
HZA566M063G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series HZA
Package Tape & Reel
Type Hybrid
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 30mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 180 mA @ 120 Hz
Ripple Current @ High Frequency 1.8 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349941-HZA566M063G24T-F
Ultra Librarian 3D Model Ultra Librarian HZA566M063G24T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1349941-HZA566M063G24T-F capacitor is a high-quality aluminum polymer capacitor designed for automotive, bypass, and decoupling applications. It is manufactured by Cornell Dubilier Electronics (CDE).

  • Capacitance: 56 µF
  • Voltage Rating: 63 V
  • Applications: Automotive, bypass, and decoupling
  • ESR: 30mOhm
  • Lifetime: 10000 Hrs @ 105°C
  • Polarization: Non-polarized
  • Package: Radial, can-smd
  • Mounting: Surface mount
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • AEC-Q200: Yes
