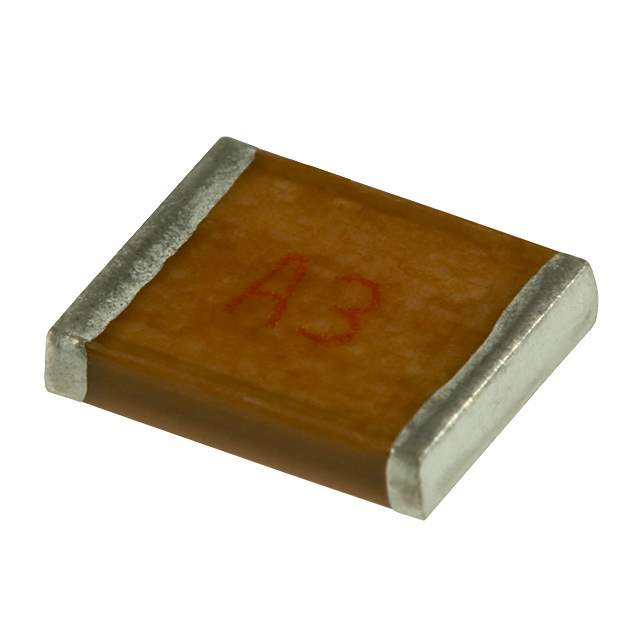

MC22FD751J-F Real Image
Same model may have multiple batches, images only for reference.

MC22FD751J-F

Part No MC22FD751J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 750PF 5% 500V 2220 / Cap Mica 750pF 500V 5% (5.7 X 5 X 2mm) SMD 125°C Bulk
Datasheet
MC22FD751J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MC
Packaging Bulk
Capacitance 750pF
Tolerance ±5%
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2220 (5750 Metric)
Features RF, High Q, Low Loss
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 777926-MC22FD751J-F
Popularity Medium
Supply and Demand Status Limited
Family Name MC
Introduction Date March 14, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MC22FD751J-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) MC22FD751J-F capacitor is a high-quality electronic component that is designed for use in RF applications.

  • Features: Low-Loss, High-Q
  • Dielectric Material: Mica
  • Capacitance: 750pF
  • Tolerance: ±5%
  • Voltage Rating DC: 500V
  • Package: 2220 (5750 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Series: MC
  • Popularity: Yes
  • Halogen-Free Compliant: Yes
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
