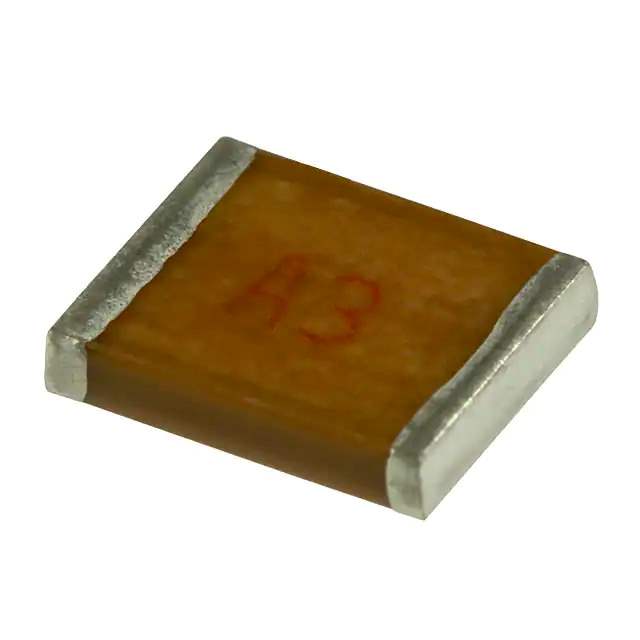

MC22FD751J-T Real Image
Same model may have multiple batches, images only for reference.

MC22FD751J-T

Part No MC22FD751J-T
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 750PF 5% 500V 2220 / 750 pF Mica Capacitor 500 V 2220 (5750 Metric)
Datasheet
MC22FD751J-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Tape & Reel
Product Status Obsolete
Capacitance 750 pF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric)
Features RF, High Q, Low Loss
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Win Source Part Number 883349-MC22FD751J-T
Ultra Librarian 3D Model Ultra Librarian MC22FD751J-T CAD Model

Description

The MC22FD751J-T is a mica and PTFE capacitor from the MC series by Cornell Dubilier Electronics (CDE).

  • Feature: RF Capabilities, high Q and low loss performance
  • Mounting: Surface Mount
  • Packaging: Tape and Reel
  • Dimensions: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Seated Height: 0.079" (2.00mm)
  • Capacitance: 750 pF
  • Voltage Rating: 500V
  • Operating Temperature: -55°C to 125°C
  • REACH: Compliant
  • ECCN: EAR99
